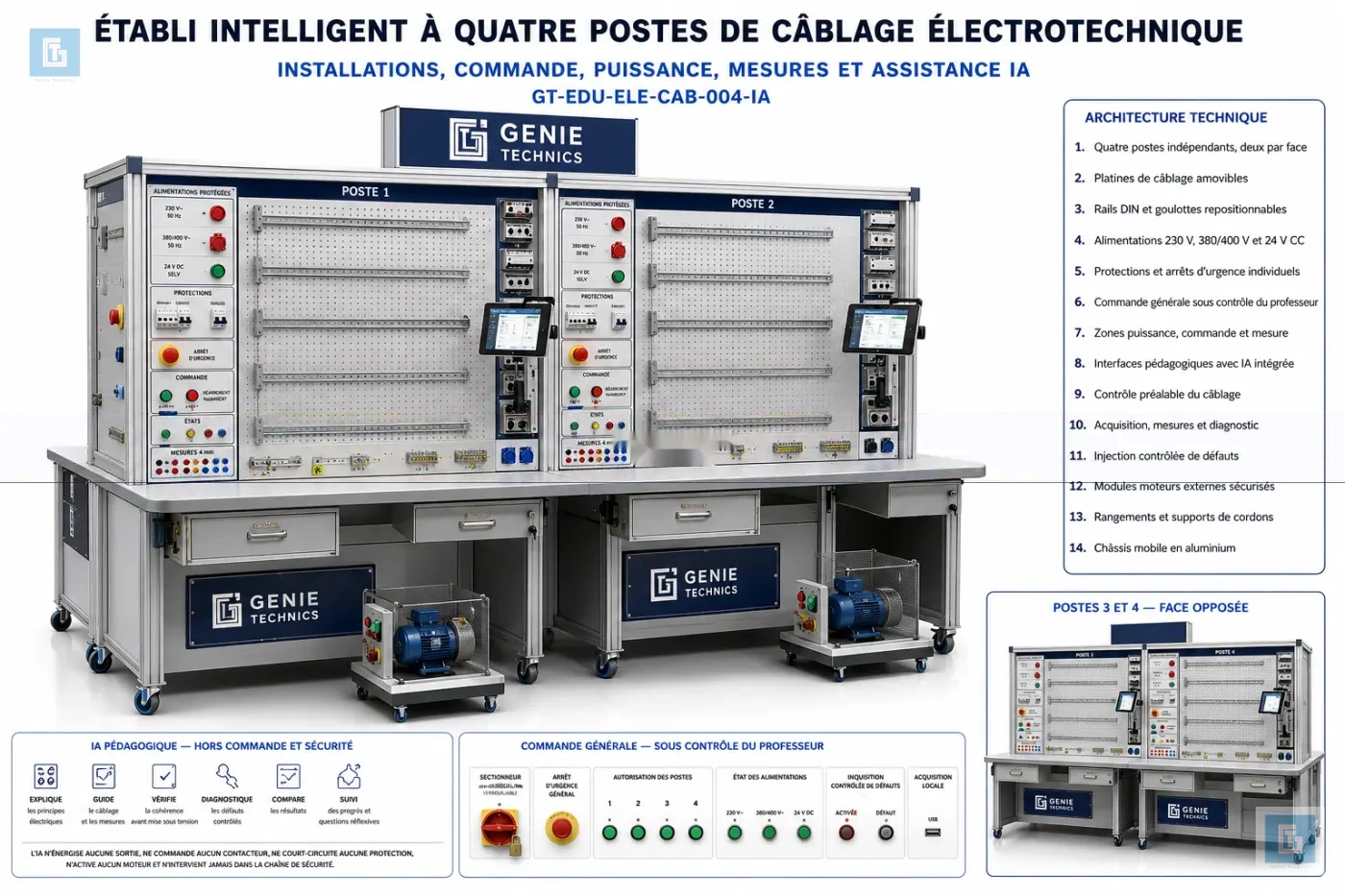

Smart four-station electrotechnical wiring bench

This smart bench lets four learners carry out real electrotechnical wiring at the same time. Two stations on each face give four independent workplaces around a central island accessible from all sides.

It covers lighting circuits (one-way, two-way, intermediate), socket and small distribution boards, impulse relays, timers, signalling, control and power (self-holding, contactor interlocking), motor starting (DOL, reversing, star-delta), protection wiring, measurements (voltage, current, continuity, insulation), fault diagnosis and maintenance.

The bench operates independently of AI. AI is optional teaching assistance: it explains, guides, checks theoretical consistency before energising, supports measurements and diagnosis, and tracks progress. It never energises a station, never commands a contactor or motor, and is not part of the safety chain.

Characteristics

• Educational power and control circuits with industrial-grade components
• Principal declared ratings and ranges: 35 mm; 4 mm; 230 V; 400 V; 24 V; 30 mA
• Protected terminals and accessible electrical measurement points
• Integrated isolation, overcurrent and emergency-stop functions
• Modular arrangement for wiring, testing and troubleshooting
• Clearly identified components and functional diagrams
• User, instructor and maintenance documentation included
