Motor and transformer testing training bench

The GENIE TECHNICS motor and transformer testing training bench is a mobile platform for electrotechnics practical work. It is used to supply, measure, characterise and diagnose single-phase and three-phase electrical machines and transformers under safe and realistic laboratory conditions.

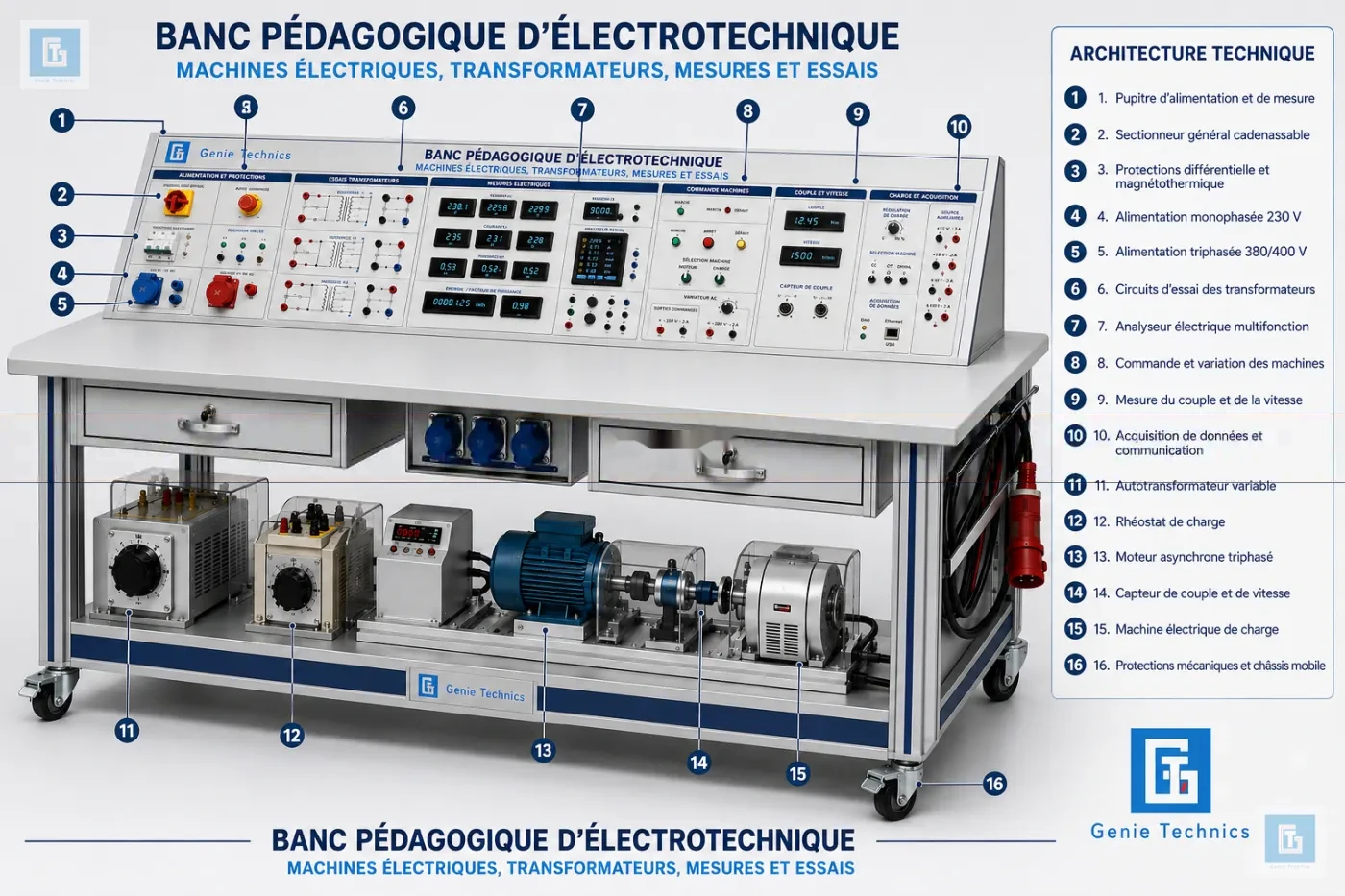

The aluminium chassis on braked castors integrates a power-supply and protection desk, a transformer test area with diagrams and terminal blocks, multi-display electrical measurements (V, A, W) combined with a power analyser, and machine control with torque and speed display. Loading, data acquisition and fault injection complete the set-up for study, diagnostics and training.

Characteristics

• Mobile aluminium chassis on braked castors
• Power-supply and protection desk (isolator, emergency stop, circuit breakers, single-/three-phase sockets)
• Single-/three-phase transformer test area with diagrams and terminal blocks
• Multi-display electrical measurements (V, A, W) and power analyser
• Machine control with torque (N·m) and speed (rpm) display
• Loading and acquisition (selector, fault injection, USB/Ethernet)
• Worktop with drawers
• Lower shelf (variac, coupled machines, protections)
