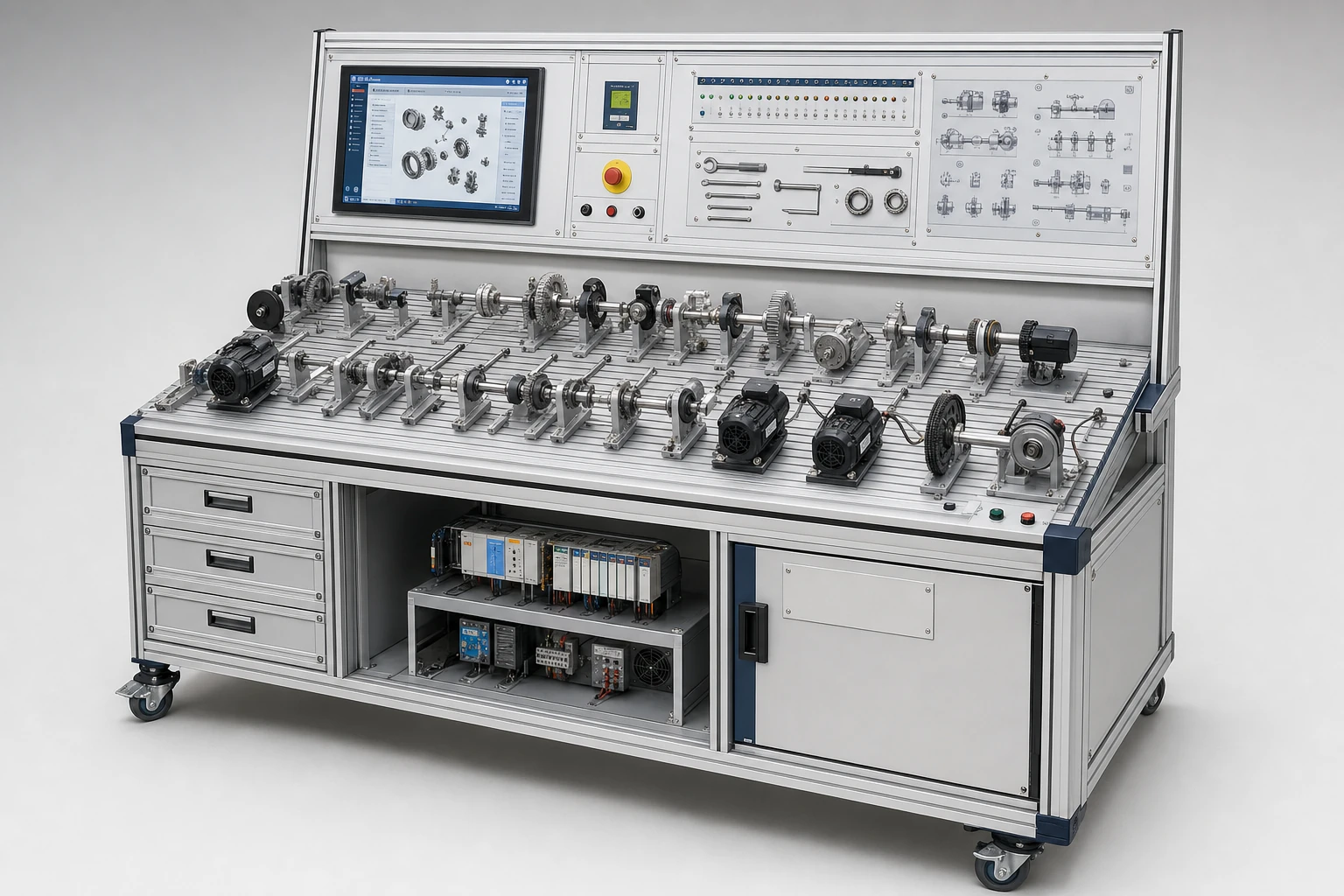

Modular training system for assembly, guidance and mechanical transmission

GENIE TECHNICS mobile training system for assembly, guidance and mechanical transmission. The grooved plate holds 24 removable industrial sub-assemblies, torque and speed sensors on six motorised modules, a touch screen and a 3D exploded documentation base. The system operates independently. AI teaching assistance can guide assembly and diagnostics. It never commands the motors or the safety chain.

Characteristics

• Robust educational structure designed for observation and practical work
• Principal declared ratings and ranges: 230 V; 50 Hz
• Instrumented mechanical assemblies with accessible adjustment points
• Measurement of the relevant force, motion and performance variables
• Protected moving parts and emergency-stop provisions where applicable
• Modular components for assembly, testing and comparison
• Complete experimental and maintenance documentation
