LV earthing and short-circuiting equipment

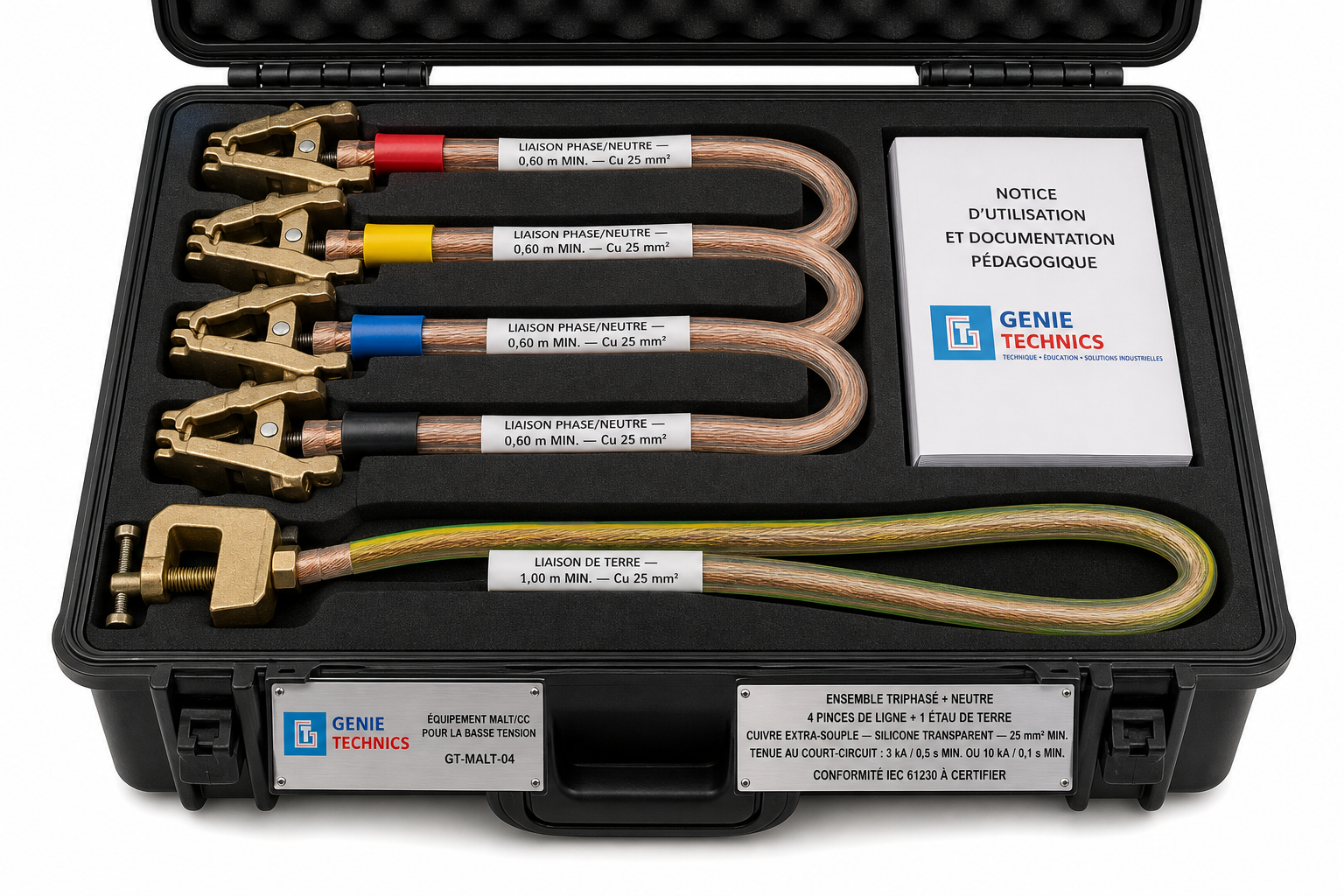

GENIE TECHNICS earthing and short-circuiting equipment for low-voltage installations: three-phase plus neutral set with four extra-flexible copper links, four contact clamps and one earth clamp.

Characteristics

• Three-phase plus neutral assembly with four connecting cables
• Extra-flexible fine-stranded copper with transparent silicone insulation
• Cable cross-section: minimum 25 mm²
• Admissible short-circuit current: minimum 3 kA for 0.5 s or minimum 10 kA for 0.1 s
• Four automatic or spring contact clamps for copper busbars or circuit-breaker outgoing terminals
• One robust screw- or vice-tightened earth clamp
• Minimum length: 0.60 m for phase links and 1.00 m for the earth link
• Pedagogical documentation supplied
• Non-contractual commercial schematic; final configuration subject to manufacturer testing and approval
