Wind energy, conversion and hybrid systems training bench — GT-WIND-01

GT-WIND-01 is the commercial complement attached to GT-HYD-01, the hydroelectric / electromechanical block of the EnR programme. A training platform for a complete wind installation: wind resource, aerodynamics, rotor, yaw, pitch, generator, electrical conversion, storage, grid connection, supervision, diagnosis and maintenance. Audience: renewable-energy technicians, electromechanics, automation technicians, network technicians and engineers. Training: 70 hours, outside the 336-hour core path. Distinct from integrated laboratory GT-RE-LAB-001.

Characteristics

• GENIE TECHNICS renewable-energy programme, nine modules: internal GT-RE-BASE (not sold alone) and eight sellable blocks
• Solar foundation: GT-RE-01 operator 21 h · GT-RE-02 installer 35 h · GT-RE-03 hybrid technician 35 h · GT-RE-04 microgrid expert 35 h
• Extension: GT-HYD-01 hydro 70 h · GT-GRID-01 grid 70 h · GT-PROD-01 productive uses 70 h · GT-OPS-01 operations and maintenance
• GT-WIND-01: commercial complement attached to GT-HYD-01 (hydro / electromechanics); 70 h training; outside the core path
• Core path (RE-01 to 04 + HYD + GRID + PROD, excluding trainer-of-trainers option): 336 h
• Skill chain: generate → convert → store → distribute → supervise → maintain → productive uses
• Ordered alone or as the full path; learners configure, measure, inject a fault, diagnose and restore service
• Groups of 8 to 12; 20 % input, 65 % practicals, 15 % assessment
• Commercial complement attached to GT-HYD-01 — wind energy, conversion and hybrid systems training bench

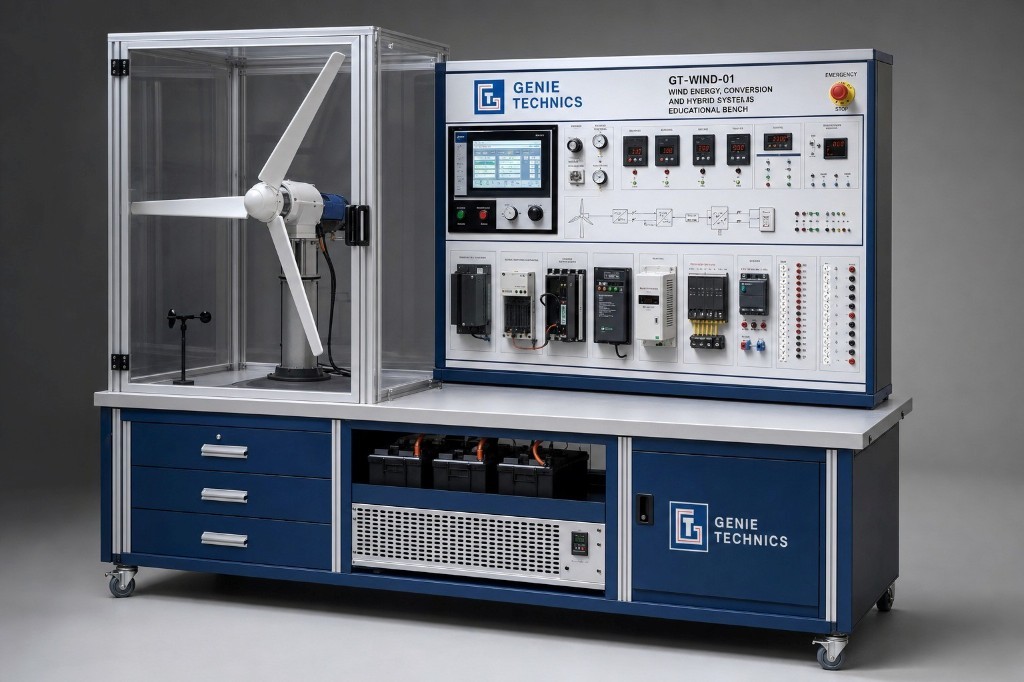

• Single mobile platform: pedagogical rotor in a transparent enclosure, wind simulator, nacelle, generator, conversion, storage, loads and supervision
• Three-blade horizontal-axis training rotor, 0.8 to 1.2 m diameter ; pedagogical aerodynamic power up to 500 W
• Axial fan or variable-speed blower ; adjustable wind 0 to 15 m/s ; anemometer
• Blade pitch 0 to 30° minimum ; yaw at least −90° to +90° ; misalignment simulation
• Secured mechanical or electromagnetic brake ; rotor speed, vibration and bearing-temperature measurement
• Wind emulation: VFD-driven motor, 0 to 3 kW ; constant, variable, gust and turbulent profiles
• Permanent-magnet synchronous or asynchronous generator according to version: 1.5 to 3 kW ; 0 to 1 800 rpm minimum
• Torque measurement (target ≤ 1 %) and speed measurement (target ≤ 0.5 %)
• Conversion: protected three-phase rectifier, DC/DC converter with wind MPPT, instrumented DC bus, 230 V AC 50 Hz inverter 1.5 to 3 kVA
• Automatic resistive dump load ; overspeed, DC-bus overvoltage, overload and short-circuit protection
• 48 V storage (training battery or emulator), useful capacity 2 to 5 kWh according to configuration ; BMS with SOC, temperature and alarms
• Protected outputs 230 V AC, 24 V DC and 48 V DC ; input for an external PV source (wind-solar hybrid study)
• HMI: wind, rotor, pitch, yaw, torque, powers, DC bus, inverter, battery, loads, alarms, flows and history
• Calculations: TSR, Cp, power/wind and torque/speed curves, efficiencies, energy, autonomy, capacity factor
• Communication: RS485, Modbus RTU/TCP, Ethernet, CSV export ; offline operation
