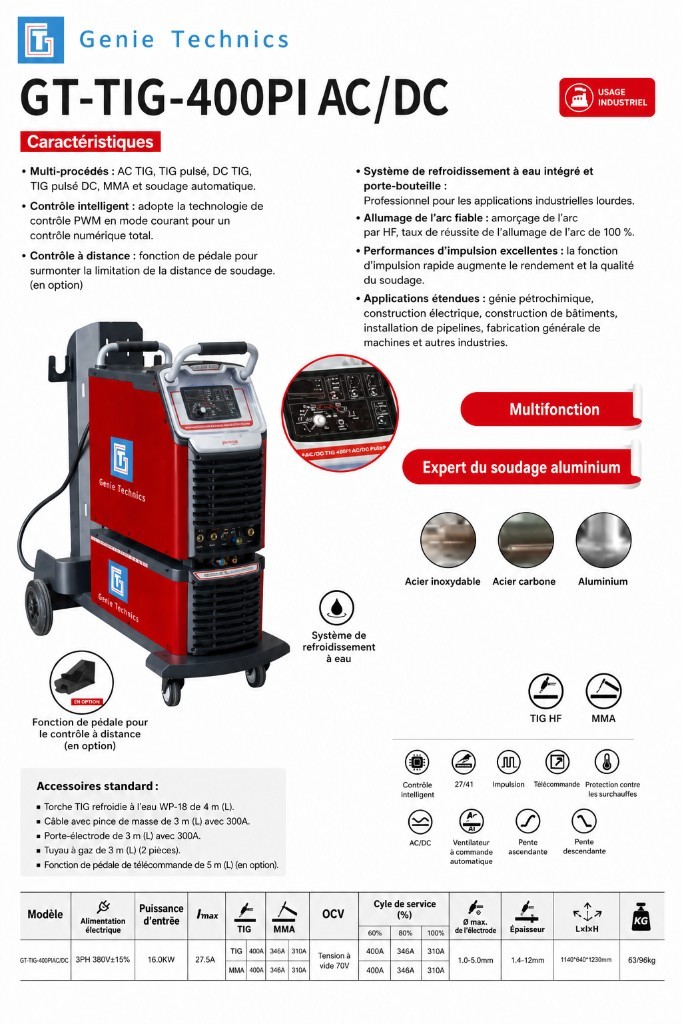

GT-TIG-400PI
The GT-TIG-400PI AC/DC is the GENIE TECHNICS 400 A trolley welder: pulsed AC/DC TIG, MMA, built-in water cooling, gas-bottle support and HF start for heavy industrial use.
Characteristics
- Industrial use
- Multi-process: AC TIG, pulsed TIG, DC TIG, pulsed DC TIG, MMA, automatic welding
- PWM digital current control
- Built-in water cooling and gas-bottle support
- Reliable HF start (claimed 100% success)
- Fast pulse: efficiency and weld quality
- Aluminium welding expert
- Applications: petrochemical, electrical construction, buildings, pipelines, fabrication
- Intelligent control, pulse, remote, overheat protection, AC/DC, auto fan, up/down slope
- Optional remote (5 m foot pedal)
- Supply: 3PH 380 V ±15%
- Input power: 16.0 kW
- Imax: 27.5 A
- Open-circuit voltage: 70 V
- TIG / MMA current: 400 A (60%) · 346 A (80%) · 310 A (100%)
- Duty cycle: 60% at 400 A / 80% at 346 A / 100% at 310 A
- Max electrode diameter: 1.0–5.0 mm
- Thickness: 1.4–12 mm
- Dimensions (L × W × H): 1140 × 640 × 1230 mm
- Net / gross weight: 63 / 96 kg
- Standard accessories: 4 m water-cooled WP-18 TIG torch; 3 m 300 A earth cable; 3 m 300 A electrode holder; 3 m gas hose (2 pieces)
- Option: 5 m foot pedal
GENIE TECHNICS GT-TIG-400PI
