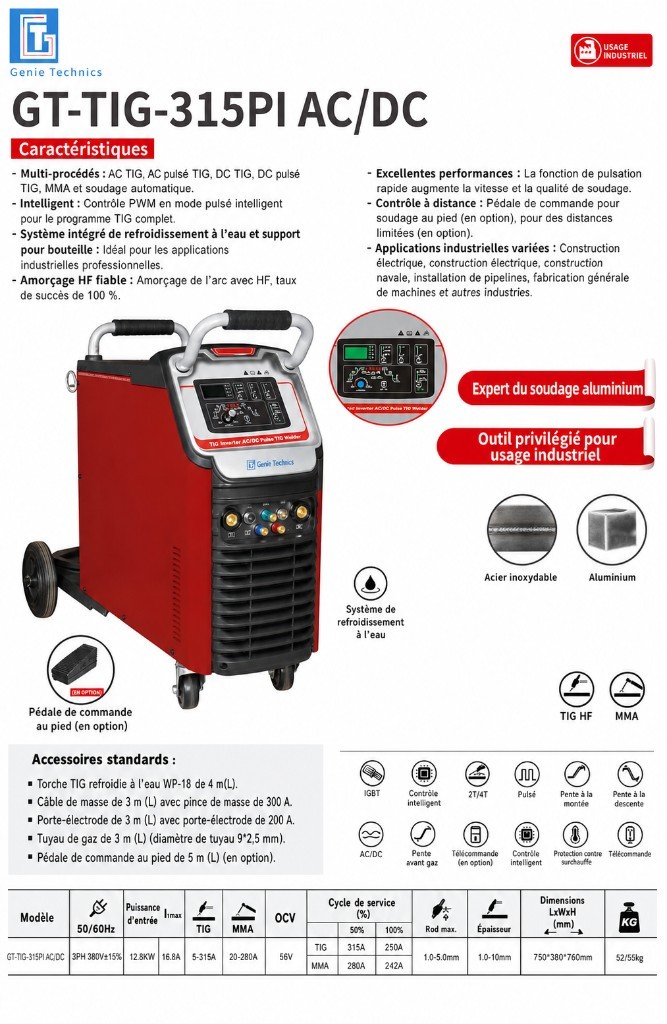

GT-TIG-315PI
The GT-TIG-315PI AC/DC is a GENIE TECHNICS industrial trolley welder: pulsed AC/DC TIG, MMA, built-in water cooling, gas-bottle support and HF start.
Characteristics
- Industrial use
- Multi-process: AC TIG, pulsed AC TIG, DC TIG, pulsed DC TIG, MMA, automatic welding
- PWM control in intelligent pulsed mode, full TIG programming
- Built-in water cooling and gas-bottle support
- Reliable HF start (claimed 100% success)
- Fast pulse: welding speed and quality
- Aluminium welding expert
- Applications: electrical construction, shipbuilding, pipelines, general fabrication
- IGBT, intelligent control, 2T/4T, pulse, up/down slope, AC/DC, pre-gas
- Optional remote (5 m foot pedal)
- Overheat protection
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 12.8 kW
- I1max: 16.8 A
- TIG current: 5–315 A
- MMA current: 20–280 A
- Open-circuit voltage: 56 V
- TIG duty cycle: 50% at 315 A / 100% at 250 A
- MMA duty cycle: 50% at 280 A / 100% at 242 A
- Max rod diameter: 1.0–5.0 mm
- Thickness: 1.0–10 mm
- Dimensions (L × W × H): 750 × 380 × 760 mm
- Net / gross weight: 52 / 55 kg
- Standard accessories: 4 m water-cooled WP-18 TIG torch; 3 m 300 A earth cable; 3 m 200 A electrode holder; 3 m gas hose (9×2.5 mm)
GENIE TECHNICS GT-TIG-315PI
