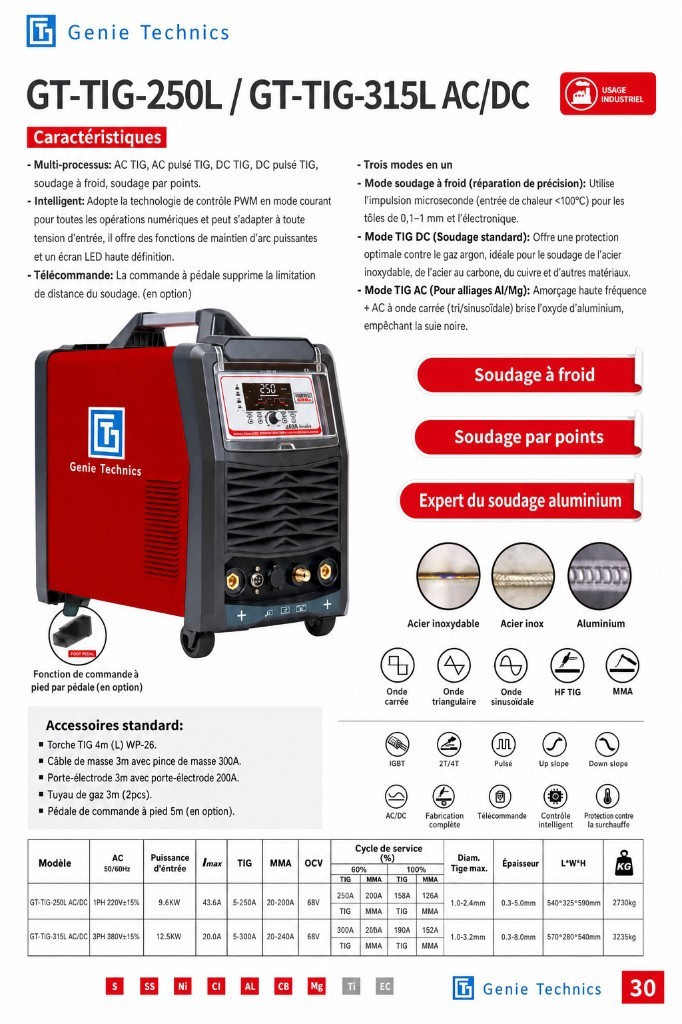

GT-TIG-250L
The GT-TIG-250L AC/DC is a GENIE TECHNICS industrial welder: AC TIG, pulsed AC TIG, DC TIG, pulsed DC TIG, cold welding and spot welding, with LED display and optional foot pedal.
Characteristics
- Industrial use
- Multi-process: AC TIG, pulsed AC TIG, DC TIG, pulsed DC TIG, cold welding, spot welding
- PWM control, arc holding, high-definition LED screen
- Cold welding: 0.1–1 mm sheets, heat input < 100 °C
- DC TIG: stainless, carbon steel, copper
- AC TIG for aluminium / magnesium: square, triangular, sinusoidal waves
- HF start, MMA, IGBT, 2T/4T, pulse, up/down slope, AC/DC
- Optional remote (5 m foot pedal)
- Materials: steel, stainless, nickel, cast iron, aluminium, copper, magnesium, titanium
- Supply: 1PH 220 V ±15% (50/60 Hz)
- Input power: 9.6 kW
- Imax: 43.6 A
- TIG current: 5–250 A
- MMA current: 20–200 A
- Open-circuit voltage: 68 V
- Duty cycle 60%: TIG 250 A / MMA 200 A
- Duty cycle 100%: TIG 158 A / MMA 126 A
- Max rod diameter: 1.0–2.4 mm
- Thickness: 0.3–5.0 mm
- Dimensions (L × W × H): 540 × 325 × 590 mm
- Weight: 27.30 kg
- Standard accessories: 4 m WP-26 TIG torch; 3 m 300 A earth cable; 3 m 200 A electrode holder; 3 m gas hose (2 pieces)
- Option: 5 m foot pedal
GENIE TECHNICS GT-TIG-250L
