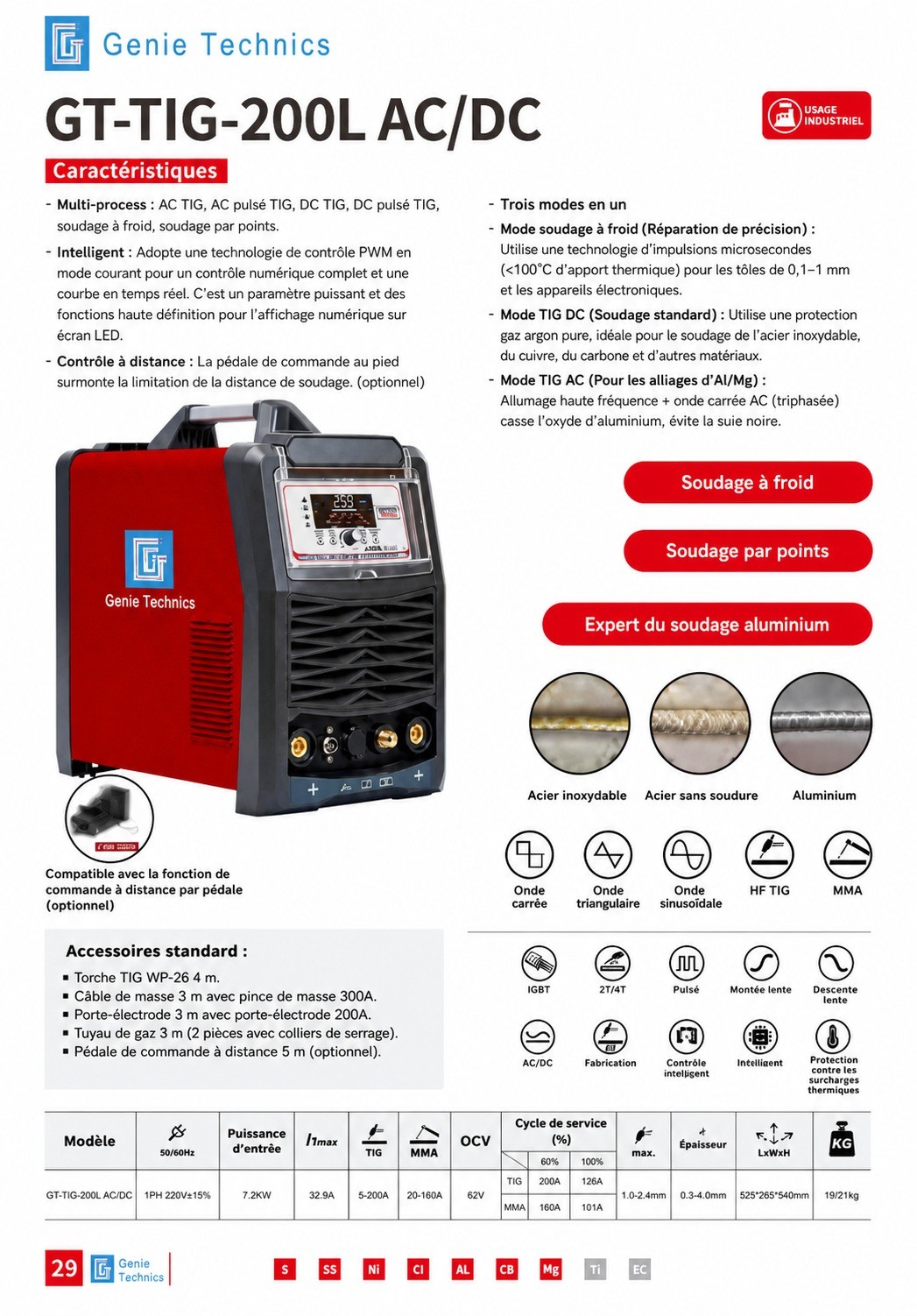

GT-TIG-200L
The GT-TIG-200L AC/DC is the compact 220 V model in the GENIE TECHNICS L series: pulsed AC/DC TIG, cold welding, spot welding and aluminium work, distinct from the LCD GT-TIG-200DP.
Characteristics
- Compact L series, industrial use
- Multi-process: AC TIG, pulsed AC TIG, DC TIG, pulsed DC TIG, cold welding, spot welding
- PWM control, current curve, high-definition LED screen
- Cold welding: 0.1–1 mm sheets, heat input < 100 °C
- DC TIG: stainless, copper, carbon steel
- AC TIG for aluminium / magnesium: square, triangular, sinusoidal waves
- HF start, MMA, IGBT, 2T/4T, pulse, slopes, AC/DC
- Optional remote (5 m foot pedal)
- Supply: 1PH 220 V ±15% (50/60 Hz)
- Input power: 7.2 kW
- I1max: 32.9 A
- TIG current: 5–200 A
- MMA current: 20–160 A
- Open-circuit voltage: 62 V
- Duty cycle 60%: TIG 200 A / MMA 160 A
- Duty cycle 100%: TIG 126 A / MMA 101 A
- Max rod diameter: 1.0–2.4 mm
- Thickness: 0.3–4.0 mm
- Dimensions (L × W × H): 525 × 265 × 540 mm
- Net / gross weight: 19 / 21 kg
- Standard accessories: 4 m WP-26 TIG torch; 3 m 300 A earth cable; 3 m 200 A electrode holder; 3 m gas hose
- Option: 5 m foot pedal
GENIE TECHNICS GT-TIG-200L
