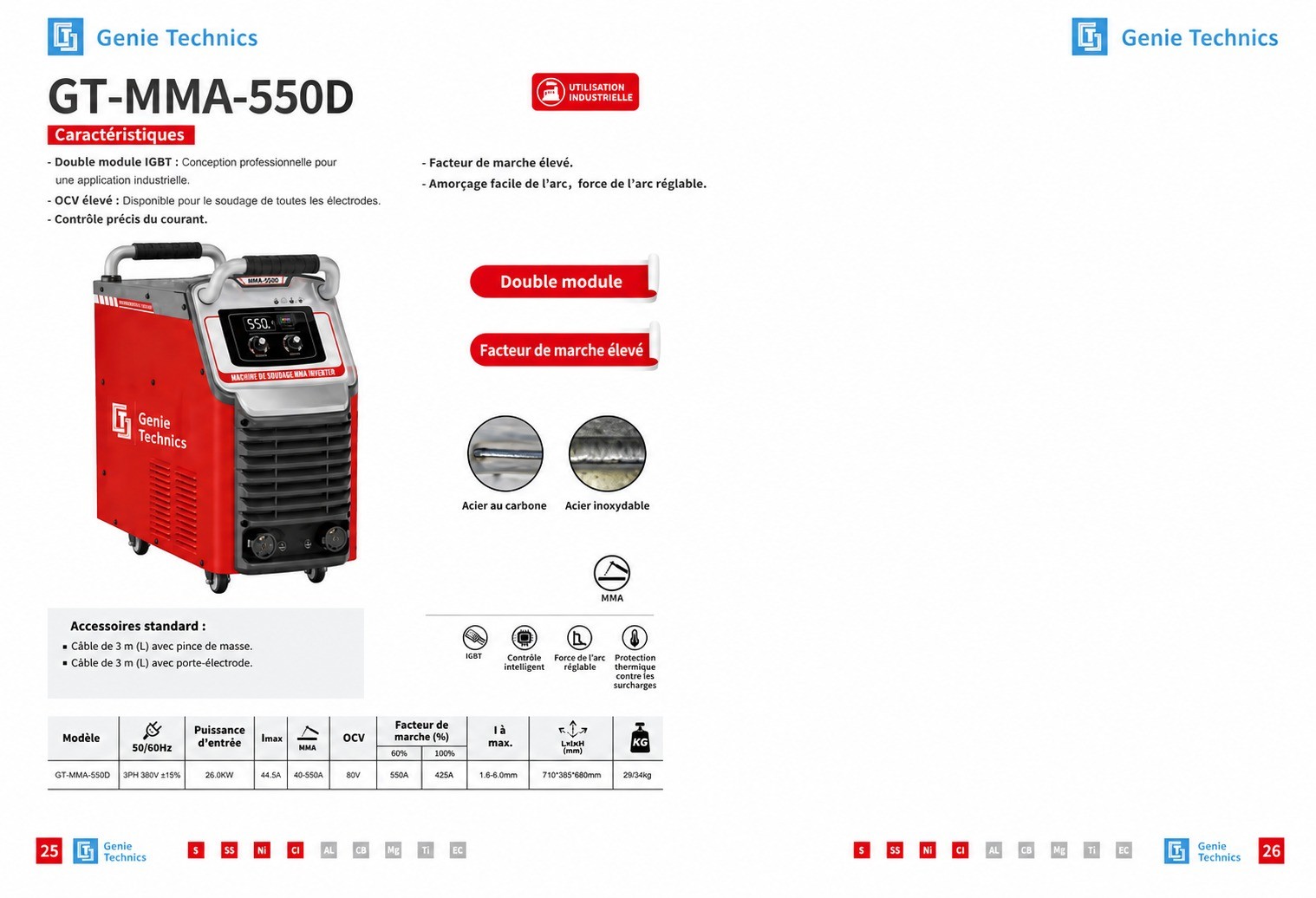

GT-MMA-550D
The GT-MMA-550D is a GENIE TECHNICS stick welder with dual IGBT modules, current up to 550 A, 80 V open-circuit voltage and a high duty cycle for industry.
Characteristics
- Industrial use
- Dual IGBT modules
- High open-circuit voltage: all electrode types
- Precise current, high duty cycle
- Easy start, adjustable arc force
- Intelligent control, thermal protection
- Materials: carbon steel, stainless, nickel, cast iron
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 26.0 kW
- Imax: 44.5 A
- MMA current: 40–550 A
- Open-circuit voltage: 80 V
- Duty cycle 60%: 550 A
- Duty cycle 100%: 425 A
- Electrode diameter: 1.6–6.0 mm
- Dimensions (L × W × H): 710 × 385 × 680 mm
- Net / gross weight: 29 / 34 kg
- Standard accessories: 3 m earth cable; 3 m electrode-holder cable
GENIE TECHNICS GT-MMA-550D
