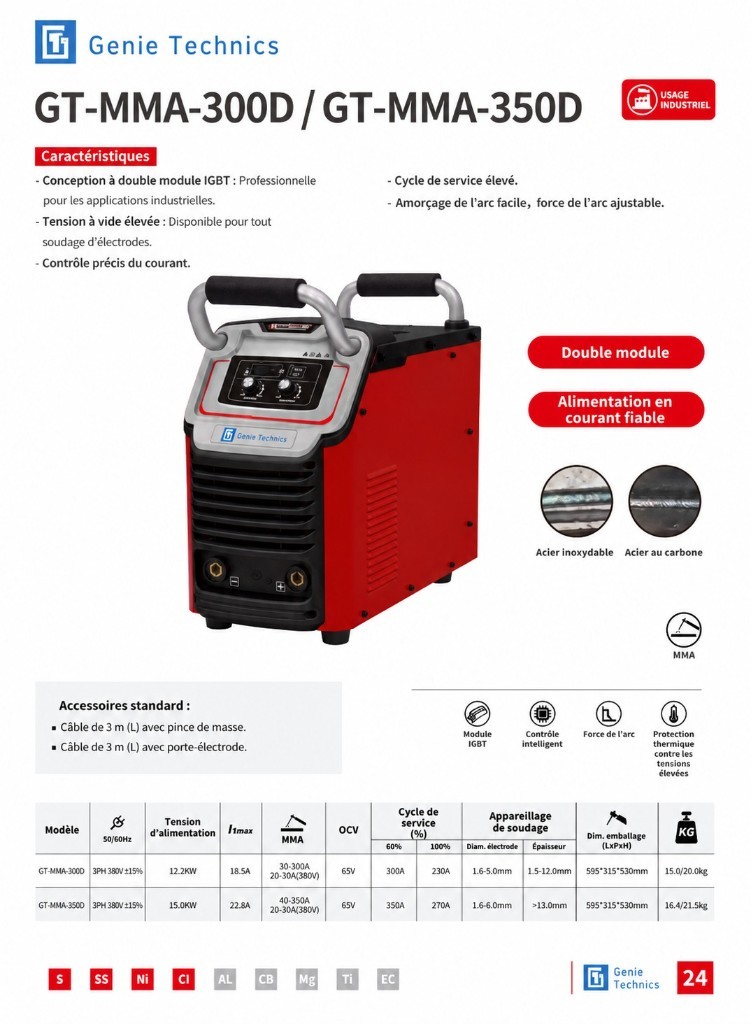

GT-MMA-350D
The GT-MMA-350D is the 350 A model in the GENIE TECHNICS industrial D series: dual IGBT modules, three-phase 380 V, electrodes up to 6.0 mm and thickness above 13 mm.
Characteristics
- Industrial use
- Dual IGBT module design
- High open-circuit voltage for all electrodes
- Precise current control; high duty cycle
- Easy arc start, adjustable arc force
- Reliable current supply
- Illustrated materials: stainless steel, carbon steel
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 15.0 kW
- I1max: 22.8 A
- MMA current: 40–350 A (complementary range 20–30 A at 380 V as on the source sheet)
- Open-circuit voltage: 65 V
- Duty cycle 60%: 350 A
- Duty cycle 100%: 270 A
- Electrode diameter: 1.6–6.0 mm
- Thickness: > 13.0 mm
- Packing dimensions (L × W × H): 595 × 315 × 530 mm
- Net / gross weight: 16.4 / 21.5 kg
- Standard accessories: 3 m earth cable; 3 m electrode-holder cable
