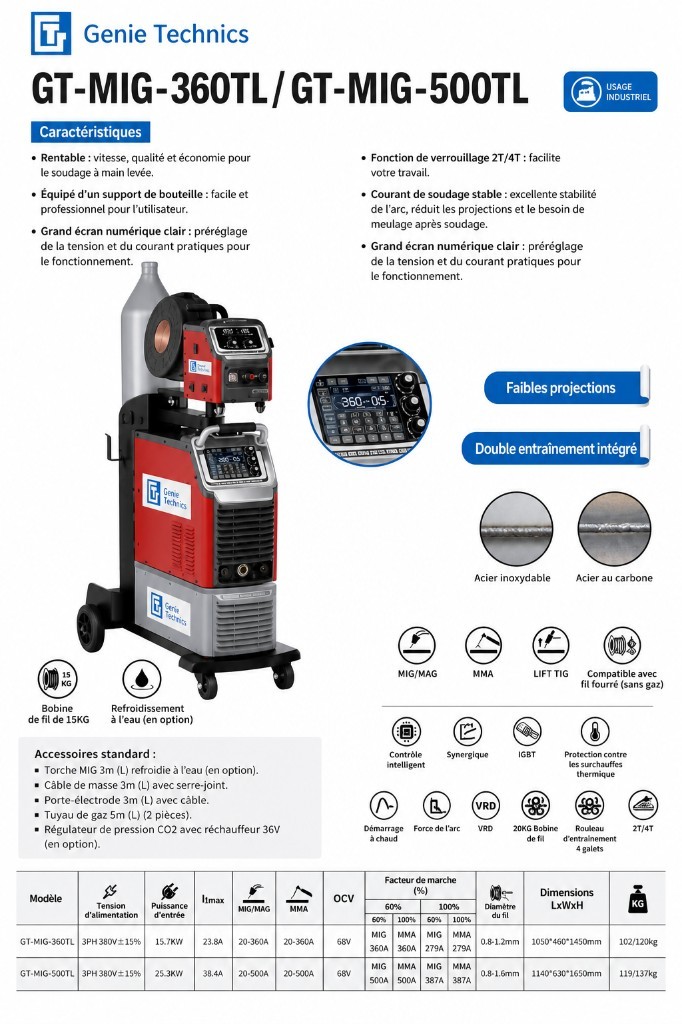

GT-MIG-500TL
The GT-MIG-500TL is the 500 A model in the GENIE TECHNICS industrial TL series: trolley, cylinder support, 4-roll feeder, digital displays, MIG/MAG–MMA–TIG LIFT, with wire up to 1.6 mm.
Characteristics
- Industrial use
- Cost-effective: speed, quality and economy for manual welding
- Cylinder support, digital displays, 2T/4T
- Stable current, low spatter, integrated dual drive
- Processes: MIG/MAG, MMA, TIG LIFT
- Flux-cored wire compatible
- 15 kg and 20 kg spools; 4-roll feeder
- Intelligent synergic control, IGBT, thermal protection
- Hot Start, Arc Force, VRD
- Optional water cooling
- Illustrated materials: stainless steel, carbon steel
- Supply: 3PH 380 V ±15%
- Input power: 25.3 kW
- I1max: 38.4 A
- MIG/MAG current: 20–500 A
- MMA current: 20–500 A
- Open-circuit voltage: 68 V
- Duty cycle 60%: MIG 500 A / MMA 500 A
- Duty cycle 100%: MIG 387 A / MMA 387 A
- Wire diameter: 0.8–1.6 mm
- Dimensions (L × W × H): 1140 × 630 × 1650 mm
- Weight: 119 / 137 kg
- Standard accessories: 3 m MIG torch (water-cooled optional); 3 m earth cable; 3 m electrode holder; 5 m gas hose (2 pieces)
- Optional: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-500TL
