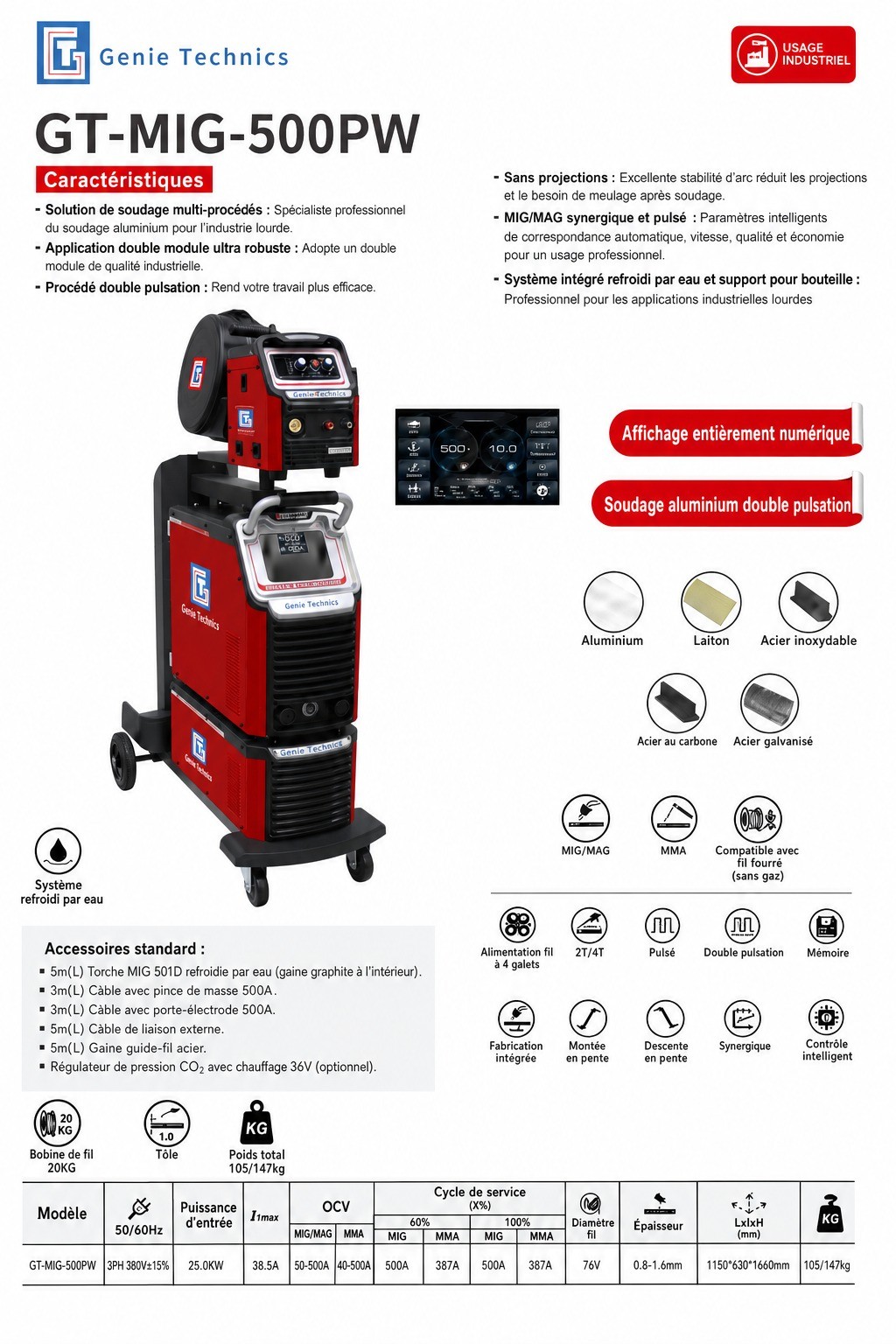

GT-MIG-500PW
The GT-MIG-500PW is the GENIE TECHNICS 500 A dual-module welder: double-pulse aluminium, separate wire feeder and built-in water cooling for heavy industry.
Characteristics
- Heavy industrial use
- Dual module, industrial-grade components
- Multi-process: double-pulse MIG/MAG, flux-cored wire, MMA
- Double-pulse aluminium welding
- Full digital display
- Water-cooled system and gas-bottle rack
- External feeder, 20 kg spool, 4-roll, 2T/4T, memory
- Materials: aluminium, brass, stainless, carbon steel, galvanized steel
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 25.0 kW
- I1max: 38.5 A
- MIG/MAG current: 50–500 A
- MMA current: 40–500 A
- Open-circuit voltage: 76 V
- Duty cycle 60%: 500 A
- Duty cycle 100%: 387 A
- Wire diameter: 0.8–1.6 mm
- Dimensions (L × W × H): 1150 × 630 × 1660 mm
- Net / gross weight: 105 / 147 kg
- Standard accessories: 5 m 501D water-cooled MIG torch; 3 m 500 A earth cable; 3 m 500 A electrode holder; 5 m feeder cable; 5 m steel liner
- Option: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-500PW
