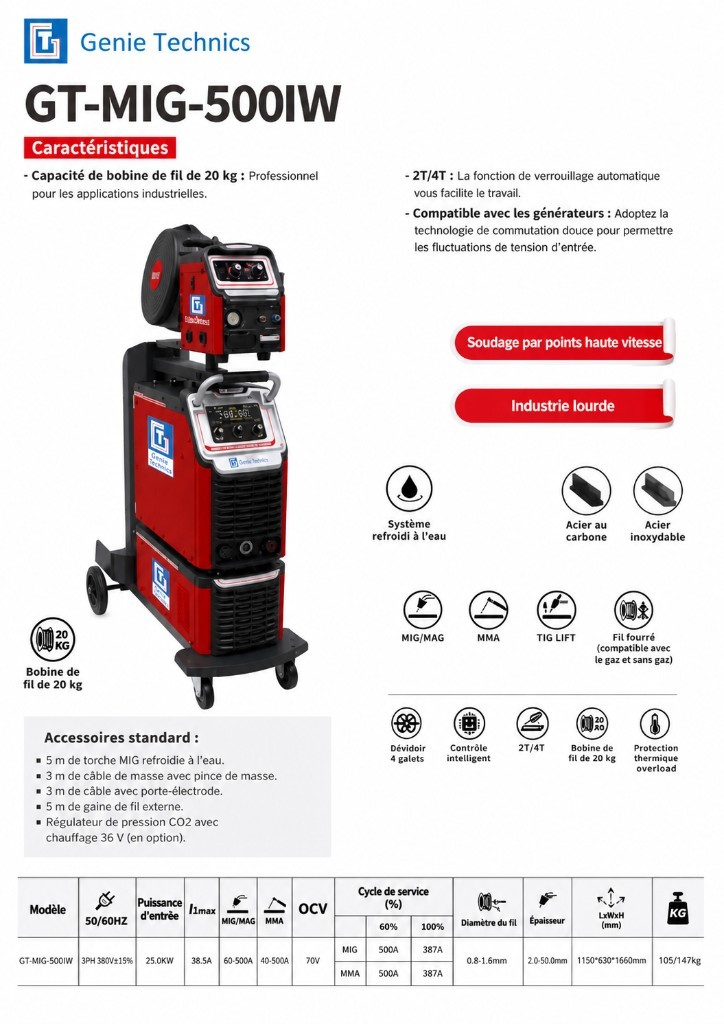

GT-MIG-500IW
The GT-MIG-500IW is a GENIE TECHNICS 500 A water-cooled welder for heavy industry and high-speed spot welding. Generator compatible, 20 kg spool, 4-roll feeder, MIG/MAG, MMA and TIG LIFT.
Characteristics
- Water-cooled system
- 20 kg spool for industrial applications
- 2T/4T automatic lock function
- Generator compatible (soft-switching, voltage fluctuations)
- High-speed spot welding; heavy industry
- Illustrated materials: carbon steel, stainless steel
- Processes: MIG/MAG, MMA, TIG LIFT
- Flux-cored wire compatible (with or without gas)
- 4-roll feeder, intelligent control, thermal protection
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 25.0 kW
- I1max: 38.5 A
- MIG/MAG current: 60–500 A
- MMA current: 40–500 A
- Open-circuit voltage: 70 V
- MIG duty cycle: 60% at 500 A / 100% at 387 A
- MMA duty cycle: 60% at 500 A / 100% at 387 A
- Wire diameter: 0.8–1.6 mm
- Welding thickness: 2.0–50.0 mm
- Dimensions (L × W × H): 1150 × 630 × 1660 mm
- Net / gross weight: 105 / 147 kg
- Standard accessories: 5 m water-cooled MIG torch; 3 m earth cable; 3 m electrode holder; 5 m external liner
- Optional: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-500IW
