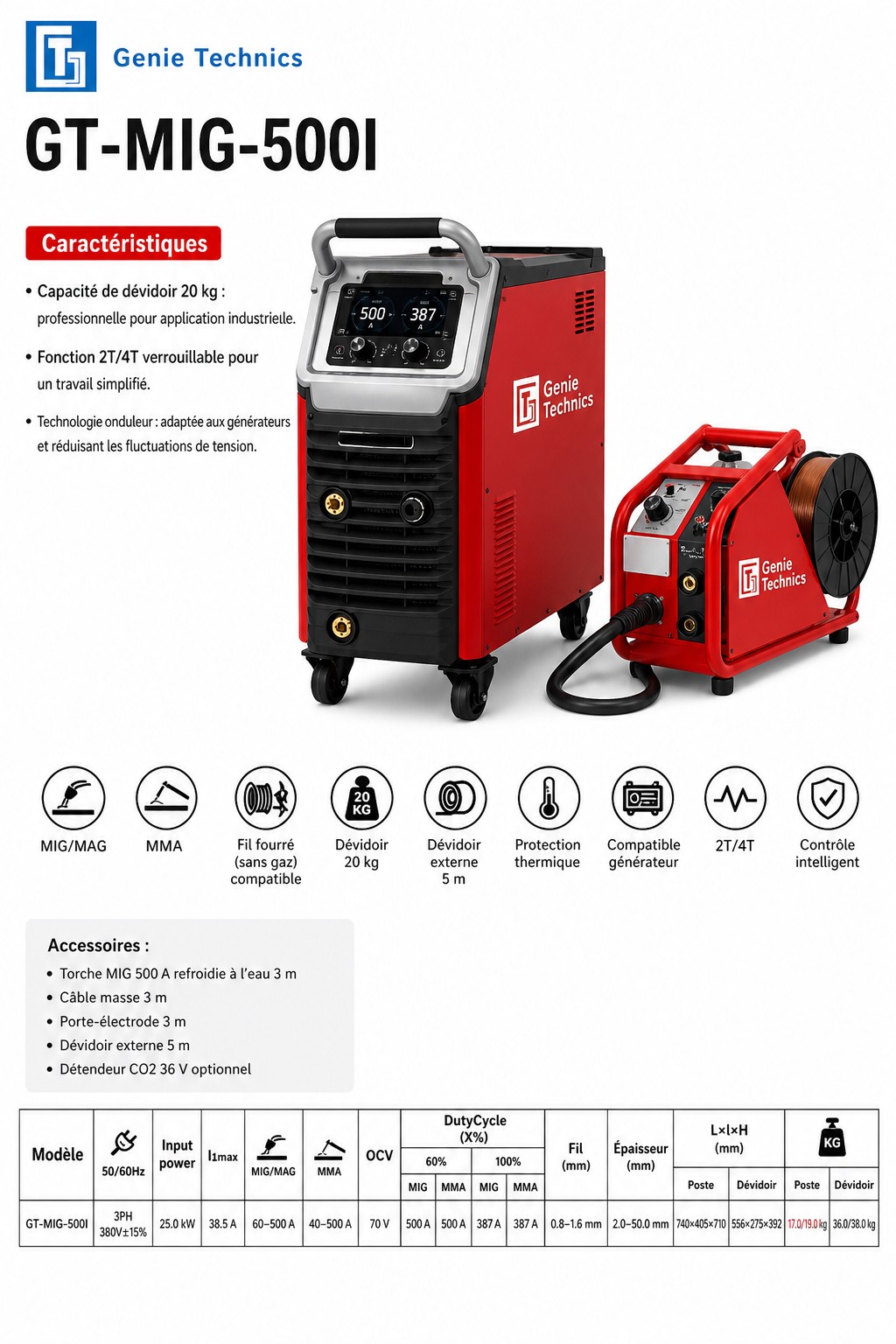

GT-MIG-500I
The GT-MIG-500I is the GENIE TECHNICS 500 A model with an external feeder and water-cooled torch, distinct from the already published GT-MIG-500IT / 500IW.
Characteristics
- 20 kg spool, heavy industry
- 2T/4T, generator-friendly
- 5 m external feeder, 4-roll
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 25.0 kW
- I1max: 38.5 A
- MIG/MAG current: 60–500 A
- MMA current: 40–500 A
- Open-circuit voltage: 70 V
- Duty cycle 60%: MIG 500 A / MMA 500 A
- Duty cycle 100%: MIG 387 A / MMA 387 A
- Wire diameter: 0.8–1.6 mm
- Thickness: 2.0–50.0 mm
- Welder: 740 × 405 × 710 mm ; 17.0 / 19.0 kg
- Feeder: 556 × 275 × 392 mm ; 36.0 / 38.0 kg
- Standard accessories: 3 m 500 A water-cooled MIG torch; 3 m earth cable; 3 m electrode holder; 5 m external feeder
- Option: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-500I
