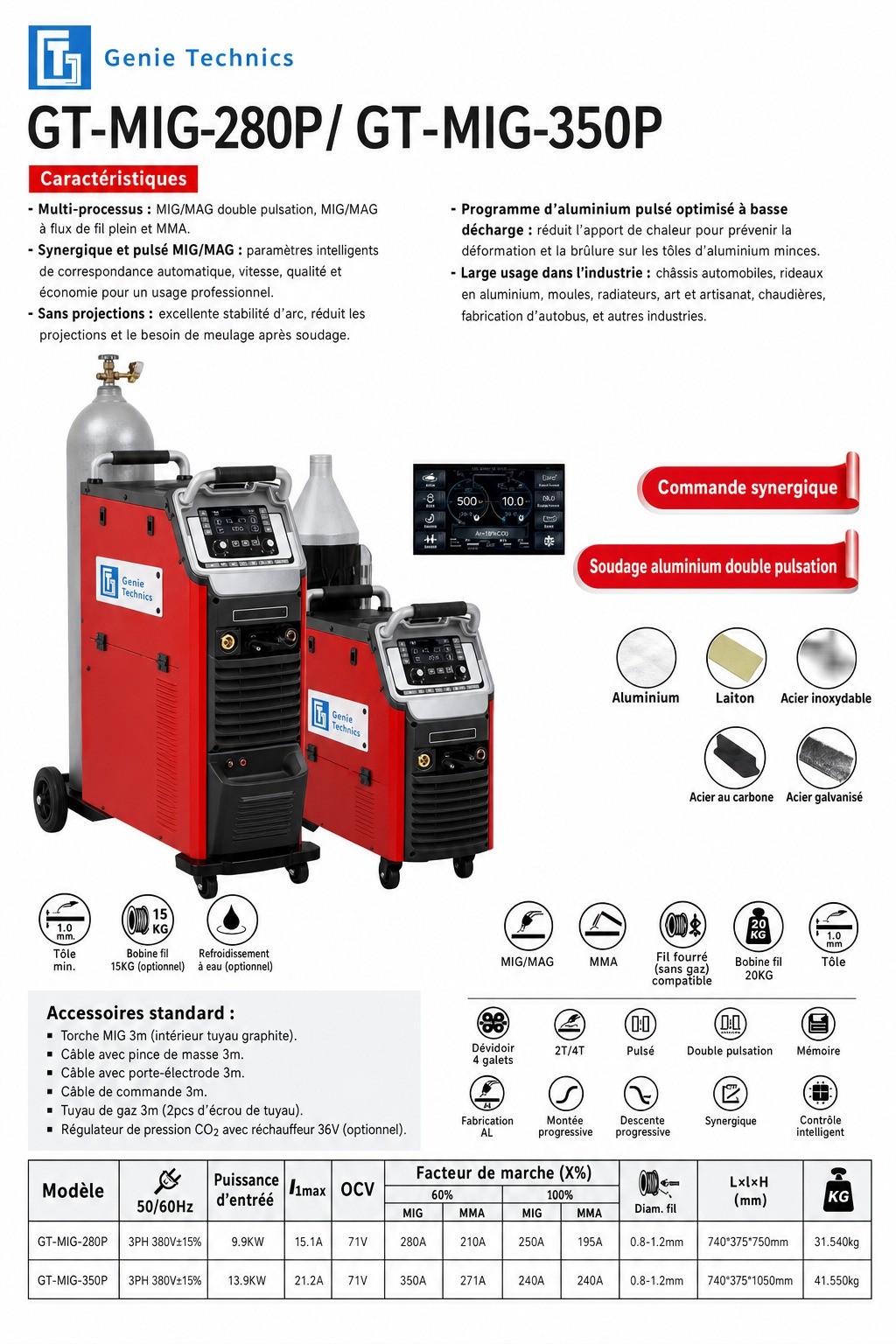

GT-MIG-350P
The GT-MIG-350P is the 350 A model in the GENIE TECHNICS P series: double-pulse MIG/MAG for aluminium, synergic control, trolley and gas-bottle rack.
Characteristics
- Industrial use
- Multi-process: double-pulse MIG/MAG, flux-cored wire, MMA
- Synergic and pulsed MIG/MAG
- Double-pulse aluminium welding
- Stable arc, low spatter
- 4-roll feeder, 2T/4T, memory, slopes
- Trolley and gas-bottle rack
- Materials: aluminium, brass, stainless, carbon steel, galvanized steel
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 13.9 kW
- I1max: 21.2 A
- MIG/MAG current: 20–350 A
- MMA current: 20–310 A
- Open-circuit voltage: 71 V
- Duty cycle 60%: MIG 350 A / MMA 271 A
- Duty cycle 100%: MIG 240 A / MMA 240 A
- Wire diameter: 0.8–1.2 mm
- Dimensions (L × W × H): 740 × 375 × 1050 mm
- Net / gross weight: 41.5 / 50 kg
- Standard accessories: 3 m MIG torch (graphite liner); 3 m earth cable; 3 m electrode holder; 3 m control cable; 3 m gas hose
- Option: CO2 regulator with 36 V heater; water cooling
GENIE TECHNICS GT-MIG-350P
