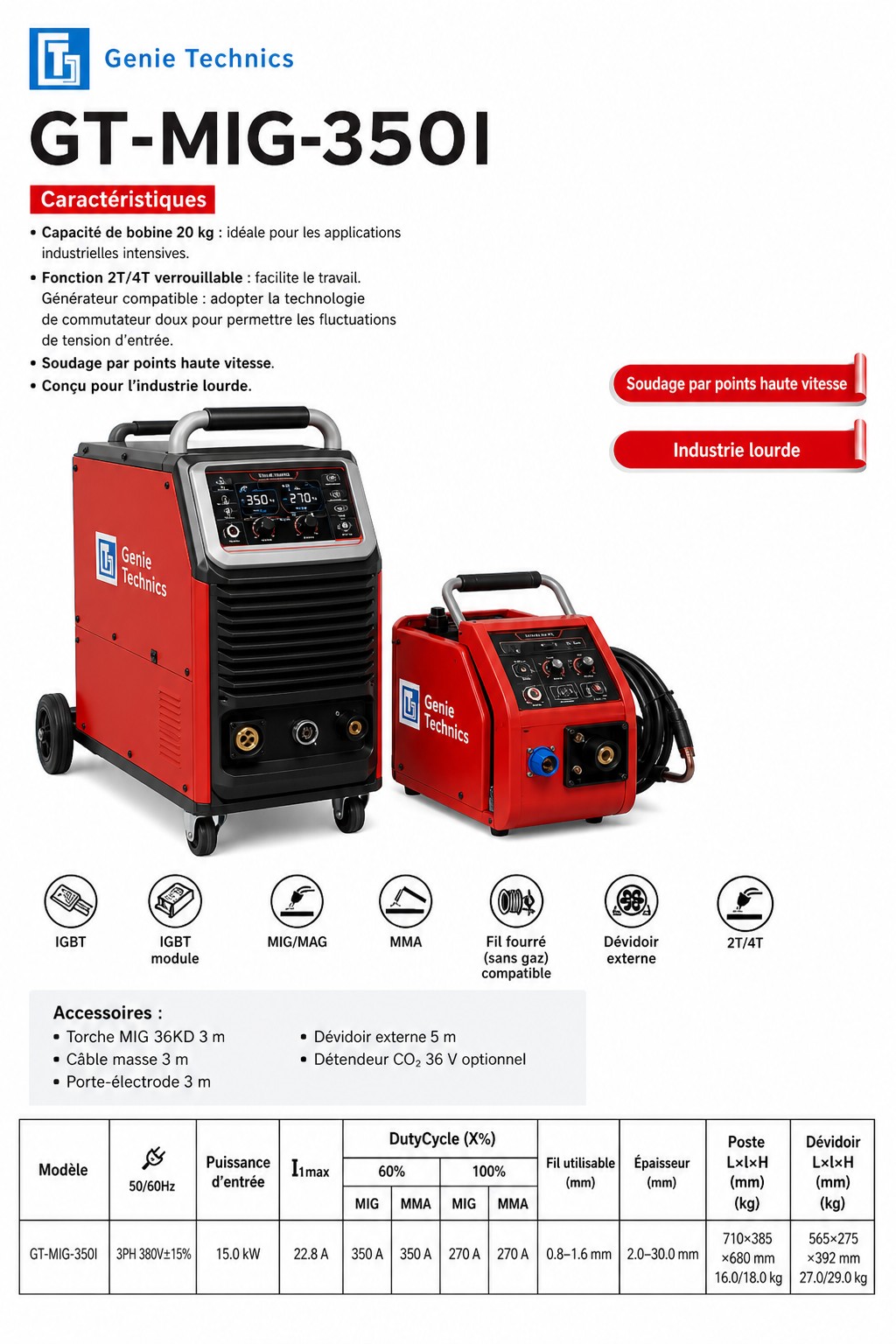

350 A MIG/MAG welder with separate feeder — GT-MIG-350I

The GT-MIG-350I is the GENIE TECHNICS 350 A model with an external feeder on three-phase 380 V, distinct from the already published GT-MIG-350IT.

Characteristics

• 20 kg spool, heavy industry
• 2T/4T, generator-friendly
• 5 m external feeder, 4-roll
• Supply: 3PH 380 V ±15% (50/60 Hz)
• Input power: 15.0 kW
• I1max: 22.8 A
• MIG/MAG current: 60–350 A
• MMA current: 40–350 A
• Open-circuit voltage: 67 V
• Duty cycle 60%: MIG 350 A / MMA 350 A
• Duty cycle 100%: MIG 270 A / MMA 270 A
• Wire diameter: 0.8–1.6 mm
• Thickness: 2.0–30.0 mm
• Welder: 710 × 385 × 680 mm ; 16.0 / 18.0 kg
• Feeder: 565 × 275 × 392 mm ; 27.0 / 29.0 kg
• Standard accessories: 3 m 36KD MIG torch; 3 m earth cable; 3 m electrode holder; 5 m external feeder
• Option: CO2 regulator with 36 V heater
