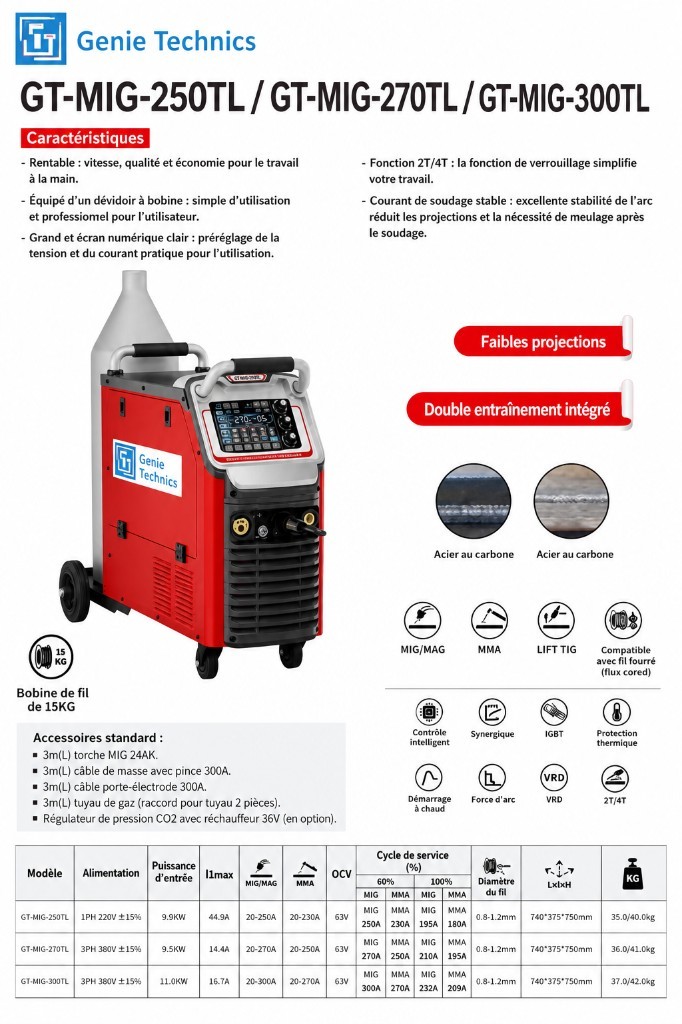

GT-MIG-300TL
The GT-MIG-300TL is the 300 A model in the GENIE TECHNICS TL series: trolley, feeder, digital display, 2T/4T and dual drive, on three-phase 380 V, for MIG/MAG current up to 300 A.
Characteristics
- Cost-effective: speed, quality and economy for manual work
- Professional spool feeder, easy to use
- Large digital display for voltage and current preset
- 2T/4T lock function
- Stable welding current, low spatter, integrated dual drive
- Processes: MIG/MAG, MMA, TIG LIFT
- Flux-cored wire compatible
- 15 kg wire spool
- Intelligent synergic control, IGBT, thermal protection
- Hot Start, Arc Force, VRD, 2T/4T
- Illustrated material: carbon steel
- Supply: 3PH 380 V ±15%
- Input power: 11.0 kW
- I1max: 16.7 A
- MIG/MAG current: 20–300 A
- MMA current: 20–270 A
- Open-circuit voltage: 63 V
- Duty cycle 60%: MIG 300 A / MMA 270 A
- Duty cycle 100%: MIG 232 A / MMA 209 A
- Wire diameter: 0.8–1.2 mm
- Dimensions (L × W × H): 740 × 375 × 750 mm
- Net / gross weight: 37.0 / 42.0 kg
- Standard accessories: 3 m MIG 24AK torch; 3 m 300 A earth cable; 3 m 300 A electrode-holder cable; 3 m gas hose (2 clamps)
- Optional: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-300TL
