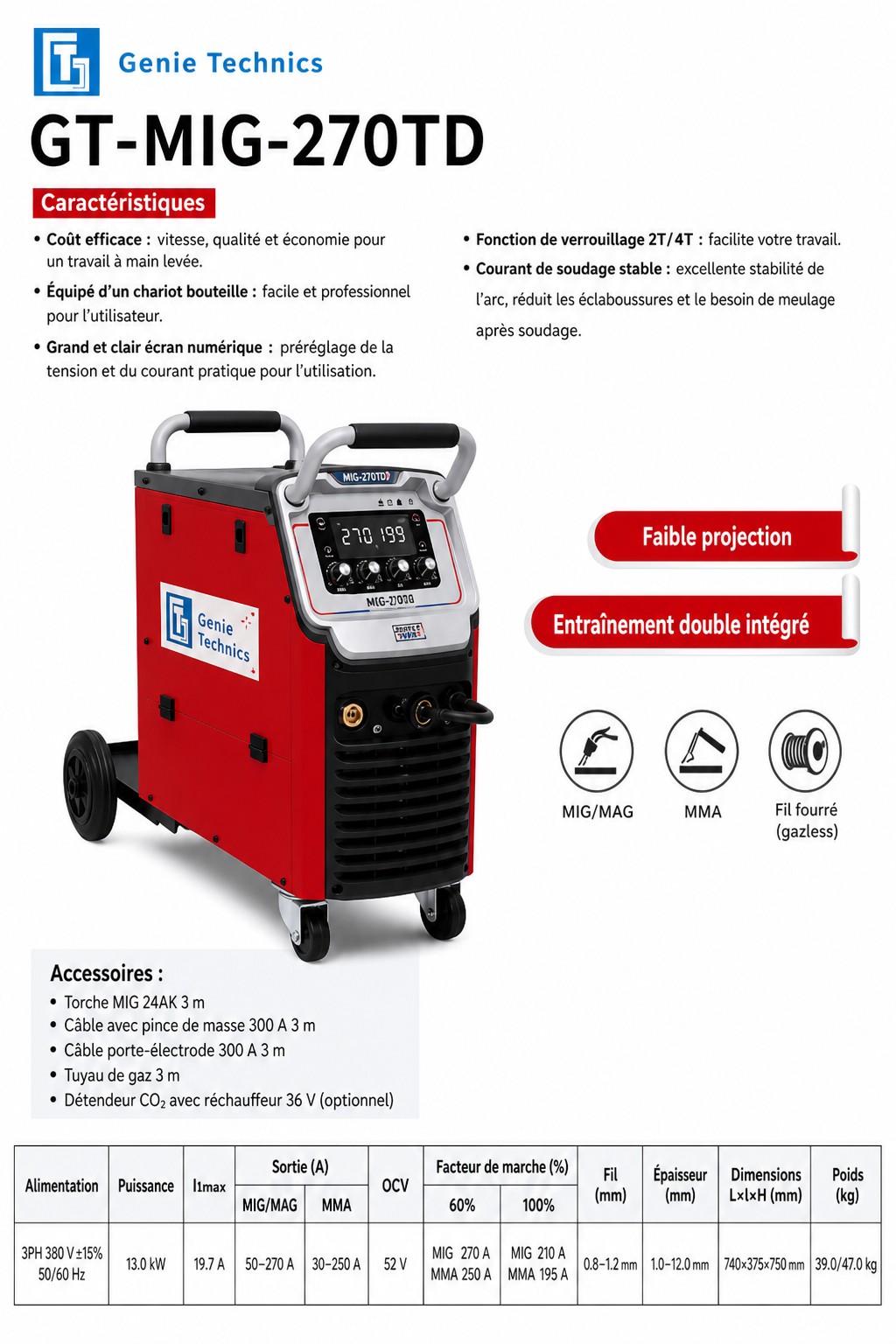

GT-MIG-270TD
The GT-MIG-270TD is the three-phase 380 V model in the GENIE TECHNICS TD series: trolley, gas-bottle rack, digital display and MIG/MAG current up to 270 A.
Characteristics
- Industrial use, gas-bottle rack
- Digital display, 2T/4T, stable current, low spatter
- MIG/MAG, MMA, flux-cored compatible
- 4-roll feeder, 15 kg spool
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 13.0 kW
- I1max: 19.7 A
- MIG/MAG current: 50–270 A
- MMA current: 30–250 A
- Open-circuit voltage: 52 V
- Duty cycle 60%: MIG 270 A / MMA 250 A
- Duty cycle 100%: MIG 210 A / MMA 195 A
- Wire diameter: 0.8–1.2 mm
- Thickness: 1.0–12.0 mm
- Dimensions (L × W × H): 740 × 375 × 750 mm
- Net / gross weight: 39.0 / 47.0 kg
- Standard accessories: 3 m 24AK MIG torch; 3 m 300 A earth cable; 3 m 300 A electrode holder; 3 m gas hose
- Option: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-270TD
