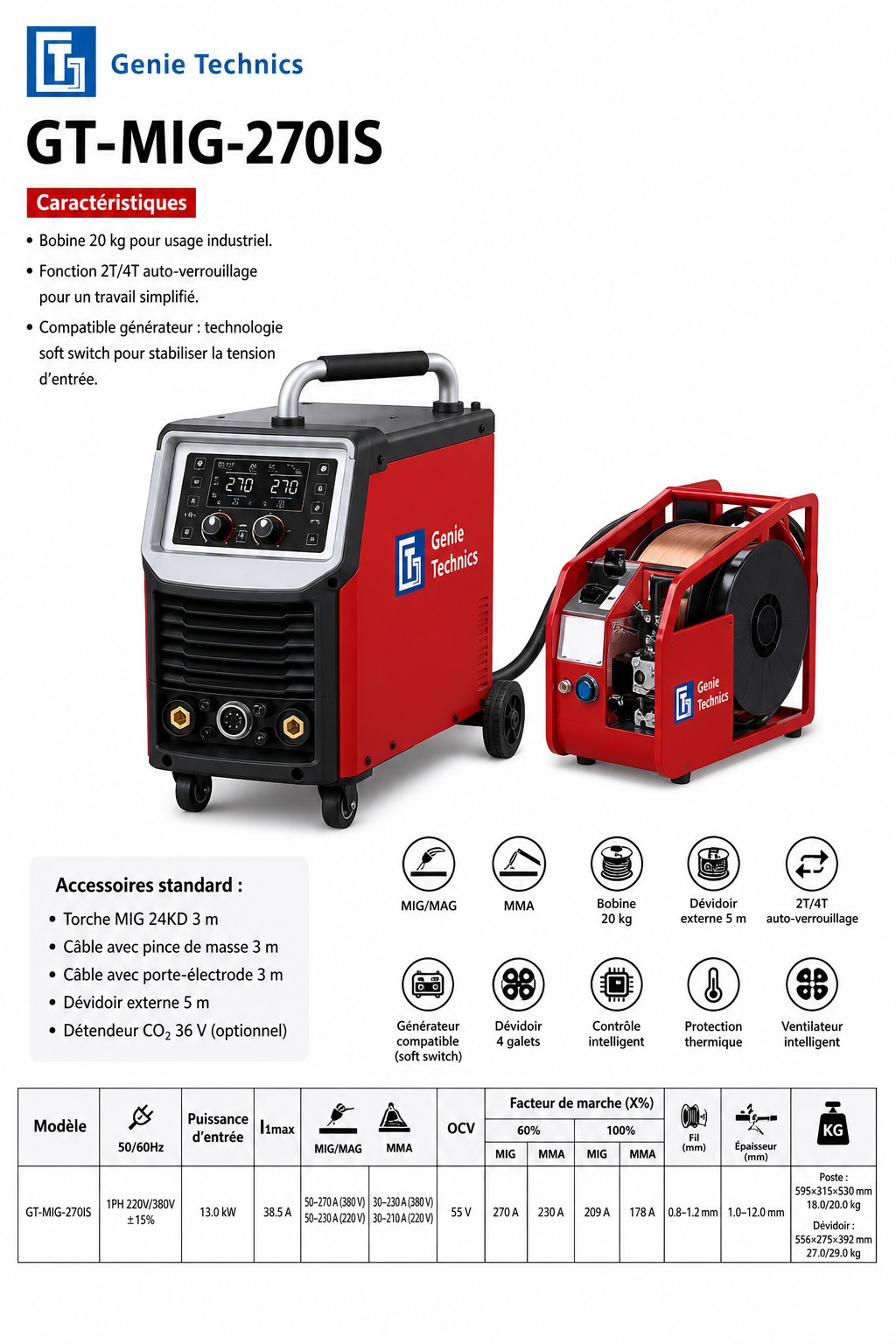

GT-MIG-270IS
The GT-MIG-270IS is a GENIE TECHNICS welder with a 20 kg external feeder, generator-friendly soft-switch technology and 2T/4T, for industrial use.
Characteristics
- 20 kg spool, industrial use
- 2T/4T self-lock
- Generator-friendly (soft switch)
- 5 m external feeder, 4-roll
- Supply: 1PH 220 V/380 V ±15% (50/60 Hz)
- Input power: 13.0 kW
- I1max: 38.5 A
- MIG/MAG current: 50–270 A (380 V) / 50–230 A (220 V)
- MMA current: 30–230 A (380 V) / 30–210 A (220 V)
- Open-circuit voltage: 55 V
- Duty cycle 60%: MIG 270 A / MMA 230 A
- Duty cycle 100%: MIG 209 A / MMA 178 A
- Wire diameter: 0.8–1.2 mm
- Thickness: 1.0–12.0 mm
- Welder: 595 × 315 × 530 mm ; 18.0 / 20.0 kg
- Feeder: 556 × 275 × 392 mm ; 27.0 / 29.0 kg
- Standard accessories: 3 m 24KD MIG torch; 3 m earth cable; 3 m electrode holder; 5 m external feeder
- Option: CO2 regulator with 36 V heater
GENIE TECHNICS GT-MIG-270IS
