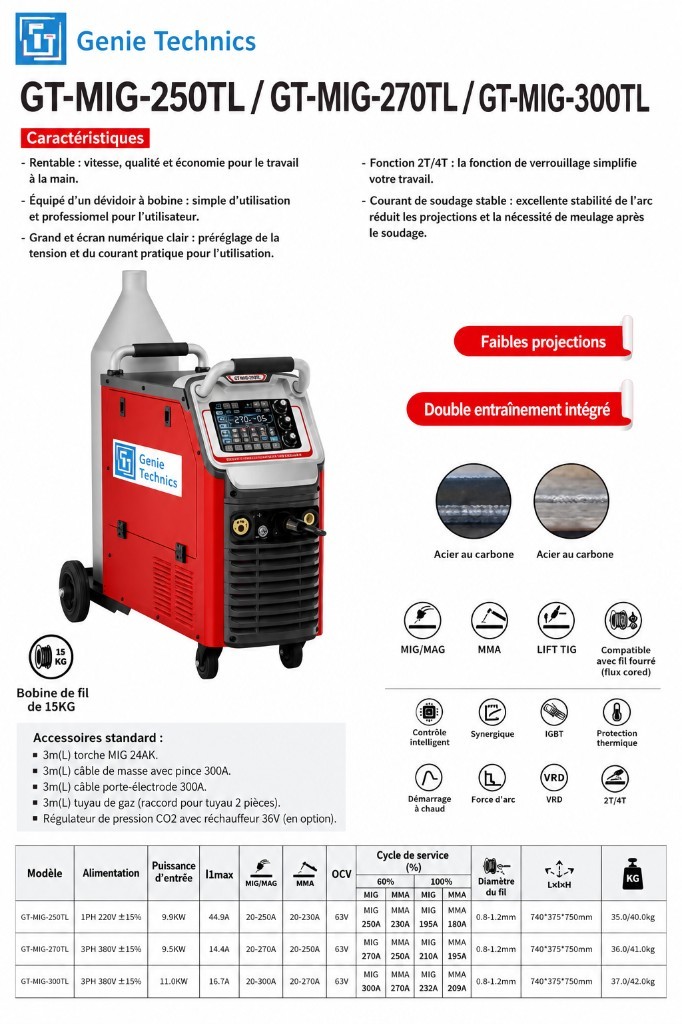

GT-MIG-250TL
The GT-MIG-250TL is a GENIE TECHNICS trolley welder with spool feeder, large digital display and integrated dual drive. It targets a stable arc, low spatter and professional workshop use on single-phase 220 V.
Characteristics
- Cost-effective: speed, quality and economy for manual work
- Professional spool feeder, easy to use
- Large digital display for voltage and current preset
- 2T/4T lock function
- Stable welding current, low spatter, integrated dual drive
- Processes: MIG/MAG, MMA, TIG LIFT
- Flux-cored wire compatible
- 15 kg wire spool
- Intelligent synergic control, IGBT, thermal protection
- Hot Start, Arc Force, VRD, 2T/4T
- Illustrated material: carbon steel
- Supply: 1PH 220 V ±15%
- Input power: 9.9 kW
- I1max: 44.9 A
- MIG/MAG current: 20–250 A
- MMA current: 20–230 A
- Open-circuit voltage: 63 V
- Duty cycle 60%: MIG 250 A / MMA 230 A
- Duty cycle 100%: MIG 195 A / MMA 180 A
- Wire diameter: 0.8–1.2 mm
- Dimensions (L × W × H): 740 × 375 × 750 mm
- Net / gross weight: 35.0 / 40.0 kg
- Standard accessories: 3 m MIG 24AK torch; 3 m 300 A earth cable; 3 m 300 A electrode-holder cable; 3 m gas hose (2 clamps)
- Optional: CO2 regulator with 36 V heater
