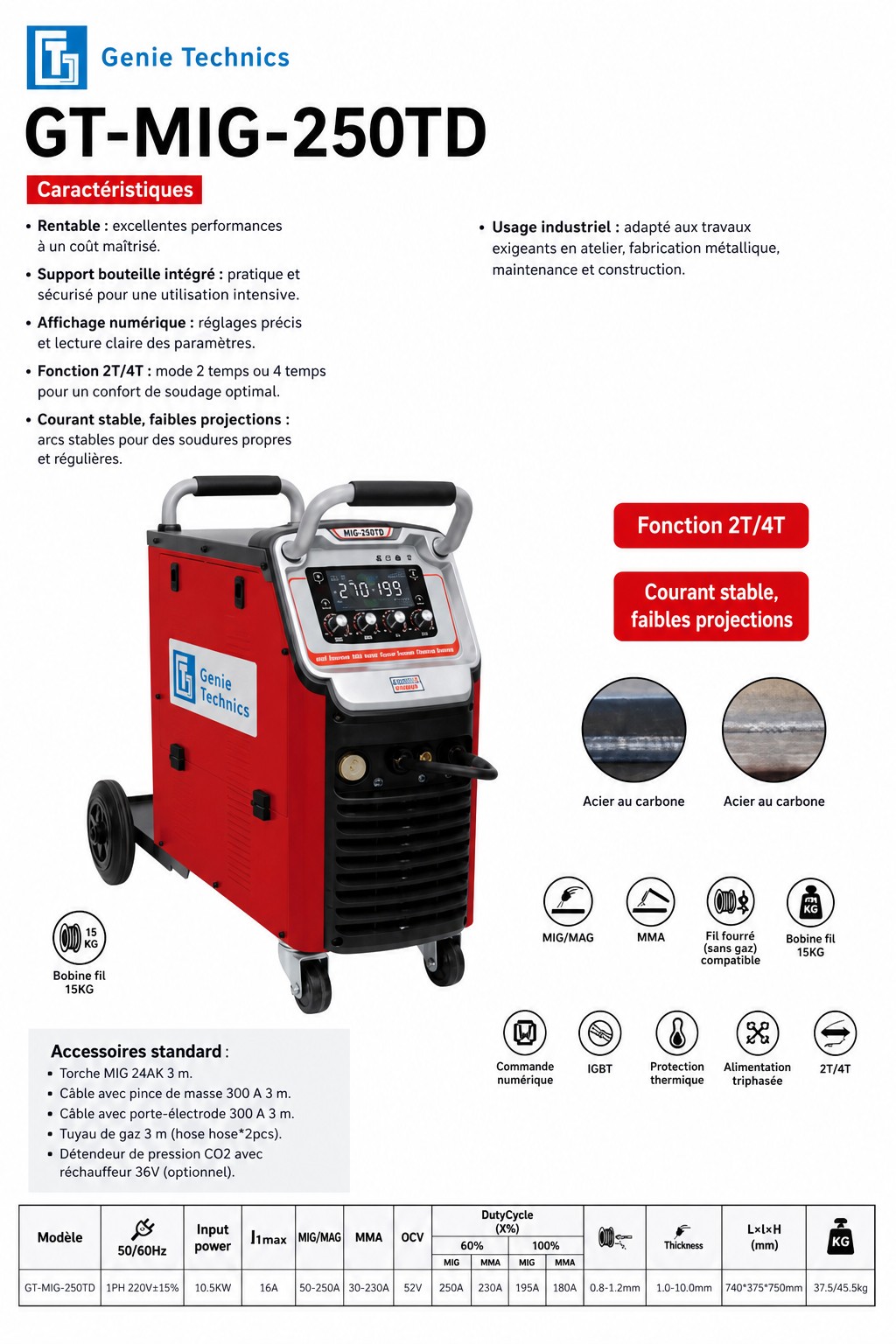

GT-MIG-250TD
The GT-MIG-250TD is a GENIE TECHNICS trolley welder on single-phase 220 V, with digital display, 2T/4T and a 4-roll feeder, for a stable low-spatter arc.
Characteristics
- Industrial use, gas-bottle rack
- Digital display, 2T/4T, stable current, low spatter
- MIG/MAG, MMA, flux-cored compatible
- 4-roll feeder, 15 kg spool
- Supply: 1PH 220 V ±15% (50/60 Hz)
- Input power: 10.5 kW
- I1max: 16 A
- MIG/MAG current: 50–250 A
- MMA current: 30–230 A
- Open-circuit voltage: 52 V
- Duty cycle 60%: MIG 250 A / MMA 230 A
- Duty cycle 100%: MIG 195 A / MMA 180 A
- Wire diameter: 0.8–1.2 mm
- Thickness: 1.0–10.0 mm
- Dimensions (L × W × H): 740 × 375 × 750 mm
- Net / gross weight: 37.5 / 45.5 kg
- Standard accessories: 3 m 24AK MIG torch; 3 m 300 A earth cable; 3 m 300 A electrode holder; 3 m gas hose
- Option: CO2 regulator with 36 V heater
