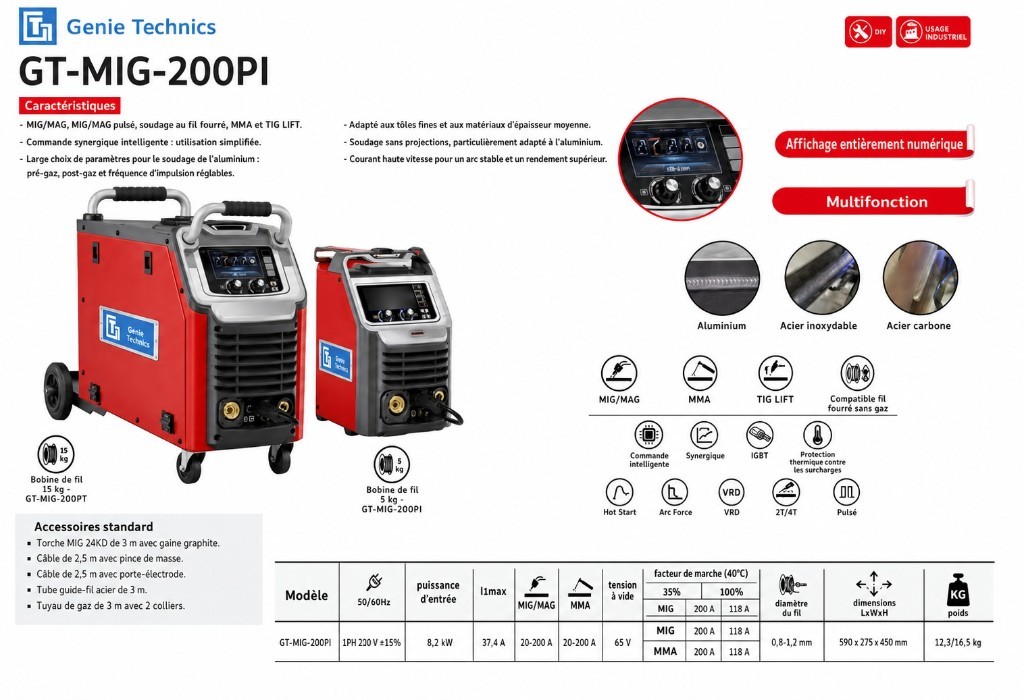

GT-MIG-200PI
The GT-MIG-200PI is a fully digital GENIE TECHNICS welder for pulsed MIG/MAG, flux-cored wire, MMA and TIG LIFT. Synergic control and aluminium parameters (pre-gas, post-gas, pulse frequency) provide a stable arc, including on thin sheet.
Characteristics
- MIG/MAG, pulsed MIG/MAG, flux-cored wire, MMA and TIG LIFT
- Intelligent synergic control for simplified use
- Adjustable aluminium parameters: pre-gas, post-gas, pulse frequency
- Suitable for thin sheet and medium thickness
- Low-spatter welding, especially for aluminium
- High-speed current for a stable arc and high efficiency
- Fully digital display, multifunctional
- DIY and industrial use
- Materials: aluminium, stainless steel, carbon steel
- Gasless flux-cored wire compatible
- 5 kg wire spool (PI); PT version 15 kg on the same source sheet
- IGBT, thermal overload protection
- Hot Start, Arc Force, VRD, 2T/4T, pulse mode
- Supply: 1PH 200 V ±15% (50/60 Hz)
- Input power: 8.2 kW
- I1max: 37.4 A
- MIG/MAG current: 20–200 A
- MMA current: 20–200 A
- Open-circuit voltage: 65 V
- Duty cycle at 40 °C, 35%: MIG 200 A / MMA 200 A
- Duty cycle at 40 °C, 100%: MIG 118 A / MMA 118 A
- Wire diameter: 0.8–1.2 mm
- Dimensions (L × W × H): 590 × 275 × 450 mm
- Weight: 12.3 / 16.5 kg
GENIE TECHNICS GT-MIG-200PI
