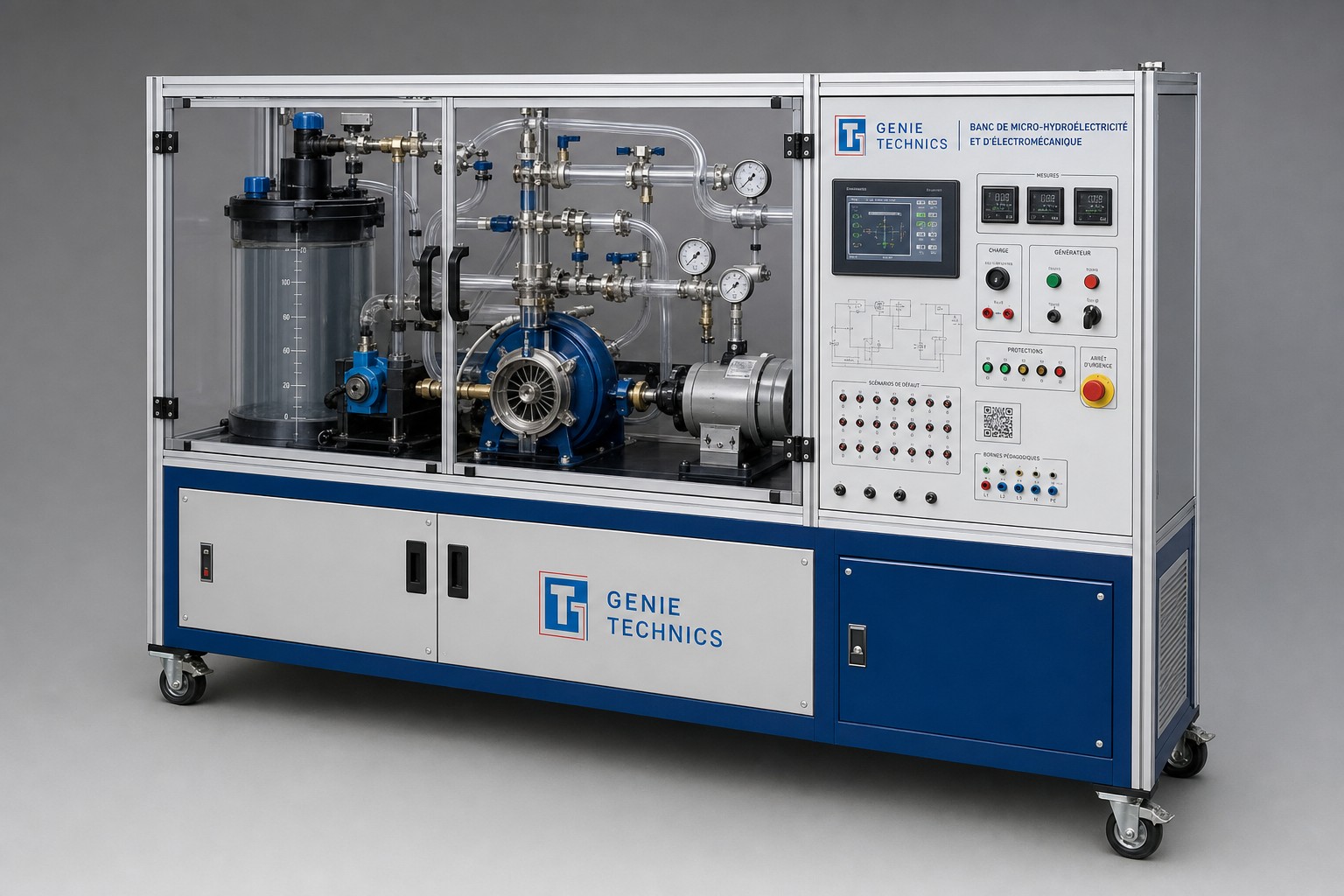

Micro-hydroelectric and electromechanical training bench — GT-HYD-01

GT-HYD-01 is the hydroelectric block of the nine-module GENIE TECHNICS renewable-energy programme. A closed recirculating platform: resource, penstock, turbine, generator, regulation, protection, coupling and maintenance. Learners plot hydraulic, mechanical, electrical and overall efficiencies — not merely a spinning turbine. Audience: electromechanics, automation technicians, plant and maintenance staff. Training: 10 days — 70 hours. It completes the GT-RE-01 to GT-RE-04 solar foundation. GT-WIND-01 (wind, conversion, hybrids) is the commercial complement attached to this module.

Characteristics

• GENIE TECHNICS renewable-energy programme, nine modules: internal GT-RE-BASE (not sold alone) and eight sellable blocks
• Solar foundation: GT-RE-01 operator 21 h · GT-RE-02 installer 35 h · GT-RE-03 hybrid technician 35 h · GT-RE-04 microgrid expert 35 h
• Extension: GT-HYD-01 hydro 70 h · GT-GRID-01 grid 70 h · GT-PROD-01 productive uses 70 h · GT-OPS-01 operations and maintenance
• GT-WIND-01: commercial complement attached to GT-HYD-01 (hydro / electromechanics); 70 h training; outside the core path
• Core path (RE-01 to 04 + HYD + GRID + PROD, excluding trainer-of-trainers option): 336 h
• Skill chain: generate → convert → store → distribute → supervise → maintain → productive uses
• Ordered alone or as the full path; learners configure, measure, inject a fault, diagnose and restore service
• Groups of 8 to 12; 20 % input, 65 % practicals, 15 % assessment
• Hydroelectric block of the EnR programme — micro-hydroelectric and electromechanical training bench
• Attached commercial complement: GT-WIND-01 (wind, conversion and hybrid systems), 70 h, outside the 336 h core path
• Closed recirculating platform: resource, penstock, turbine, generation, regulation, protection, coupling, efficiency
• Reservoir: 500 to 1 000 litres, visible level, low drain, cleaning access, low-level detection
• Circulation pump: 5.5 to 7.5 kW, VFD-driven
• Useful flow: 0 to 30 m³/h ; measurement target ≤ 1 %
• Head: 0 to 35 mWC ; pressure measurement target ≤ 0.5 % of full scale
• Circuit: main pipe, bypass, valves, upstream/downstream pressure taps, head-loss simulation
• Interchangeable Pelton and crossflow turbines ; Francis turbine optional
• Speed 0 to about 3 000 rpm ; tachometer ; torque by sensor or validated calculation (target ≤ 1 %)
• Synchronous or asynchronous generator: 1 to 3 kW, 230/400 V, regulation and protection
• Resistive load bank: 0 to 2 kW minimum ; voltage, frequency, pedagogical synchronisation according to version
• Acquisition: flow, pressures, speed, torque, voltage, current, powers, frequency, energy
• Hydraulic, mechanical, electrical and overall efficiencies ; H(Q) curves and operating point
• Protection: low level, dry run, leak, overpressure, overspeed, overload, electrical fault
• At least 20 fault scenarios ; practicals on pump, losses, Pelton/crossflow, generation, regulation, diagnosis
