GT-ELE-002
Mobile GENIE TECHNICS pedagogical training bench designed for teaching power electronics and energy conversion. It enables students to study, under real and safe conditions, single- and three-phase rectification, DC/DC choppers (series Buck / parallel Boost), single- and three-phase inverters, R, L and C loads, as well as filtering and grid synchronization.
Learners visualize and analyze electrical quantities through secure measurement points and full acquisition (V, A, kW) with waveform display. A PWM control generator (frequency / duty cycle) and isolated low-voltage control link theory, settings and laboratory practice.

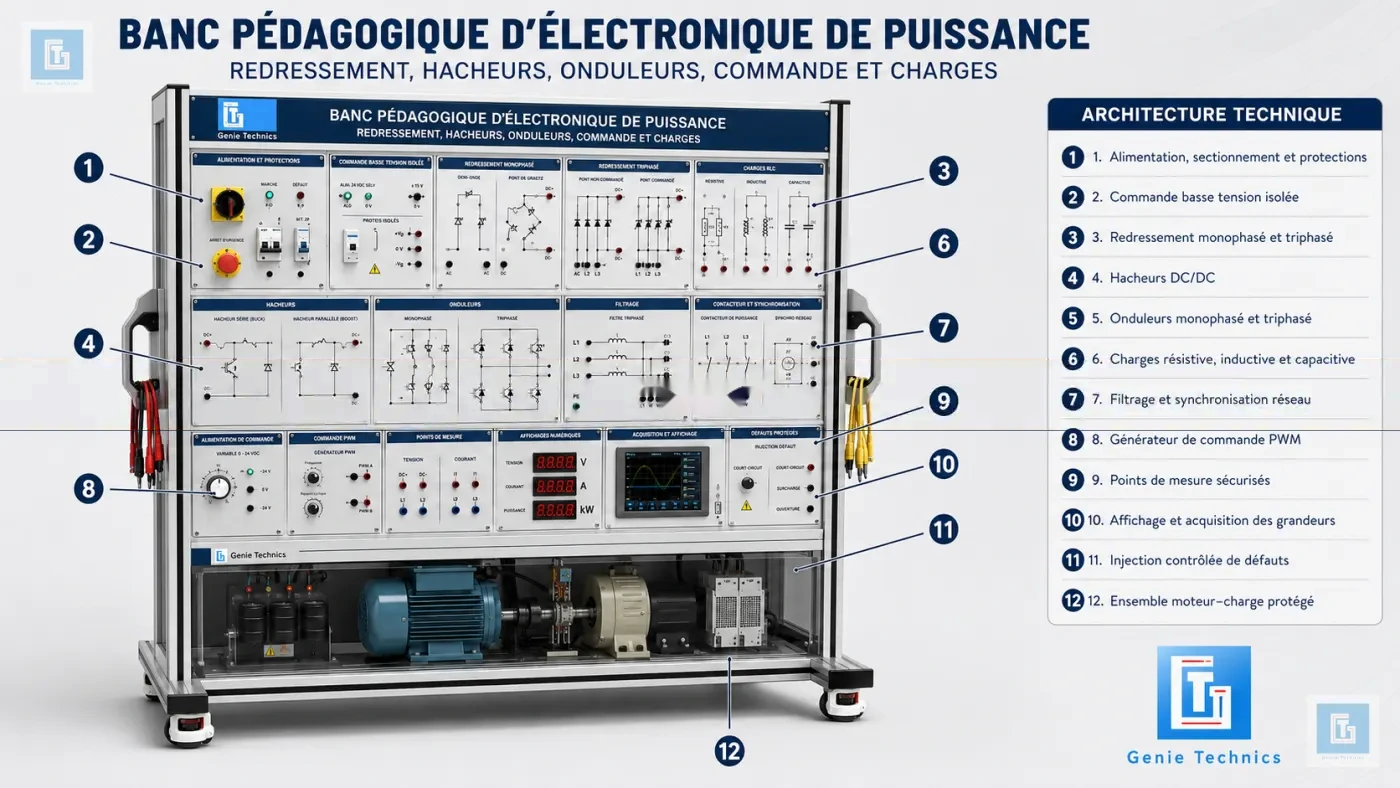

Built on a mobile multi-level modular aluminium chassis, the bench integrates power supply, isolation and protections (main switch, emergency stop, circuit breakers), controlled fault injection for diagnostic training, and a protected motor–load assembly in the lower section. It is a complete solution for training centres, vocational schools, technical universities and teaching workshops.
Characteristics
- Educational power and control circuits with industrial-grade components
- Protected terminals and accessible electrical measurement points
- Integrated isolation, overcurrent and emergency-stop functions
- Modular arrangement for wiring, testing and troubleshooting
- Clearly identified components and functional diagrams
- User, instructor and maintenance documentation included
GENIE TECHNICS GT-ELE-002
