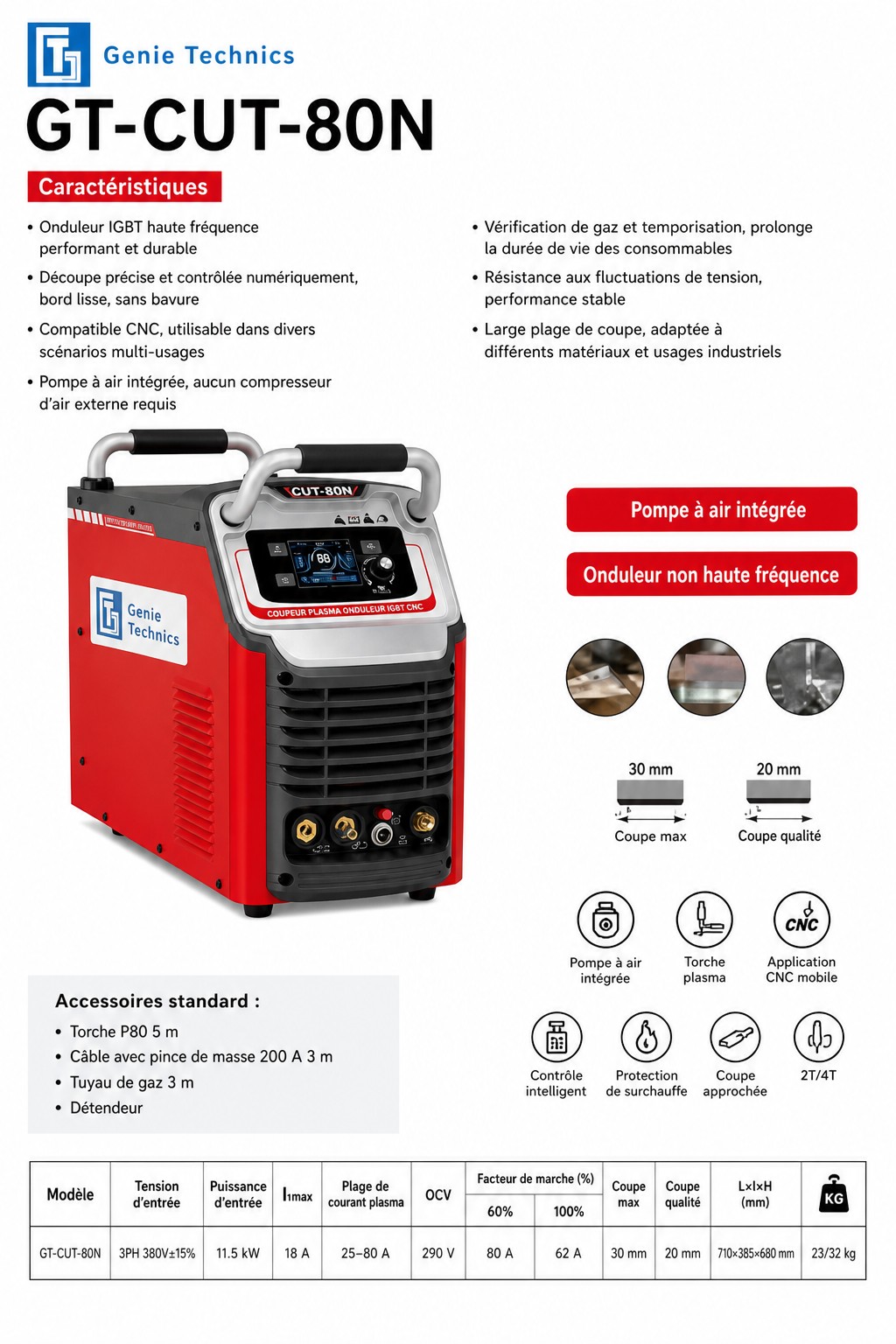

80 A plasma cutter with built-in air pump — GT-CUT-80N

The GT-CUT-80N is the three-phase 380 V model in the GENIE TECHNICS N series: built-in air pump, max cut 30 mm.

Characteristics

• Non-HF IGBT inverter
• Digital control, smooth burr-free cut
• CNC compatible, built-in air pump
• Gas check and delay
• Supply: 3PH 380 V ±15% (50/60 Hz)
• Input power: 11.5 kW
• I1max: 18 A
• Plasma current: 25–80 A
• Open-circuit voltage: 290 V
• Duty cycle 60%: 80 A / 100%: 62 A
• Max cut: 30 mm; quality cut: 20 mm
• Dimensions (L × W × H): 710 × 385 × 680 mm
• Net / gross weight: 23 / 32 kg
• Standard accessories: 5 m P80 torch; 3 m 200 A earth cable; 3 m gas hose; regulator
