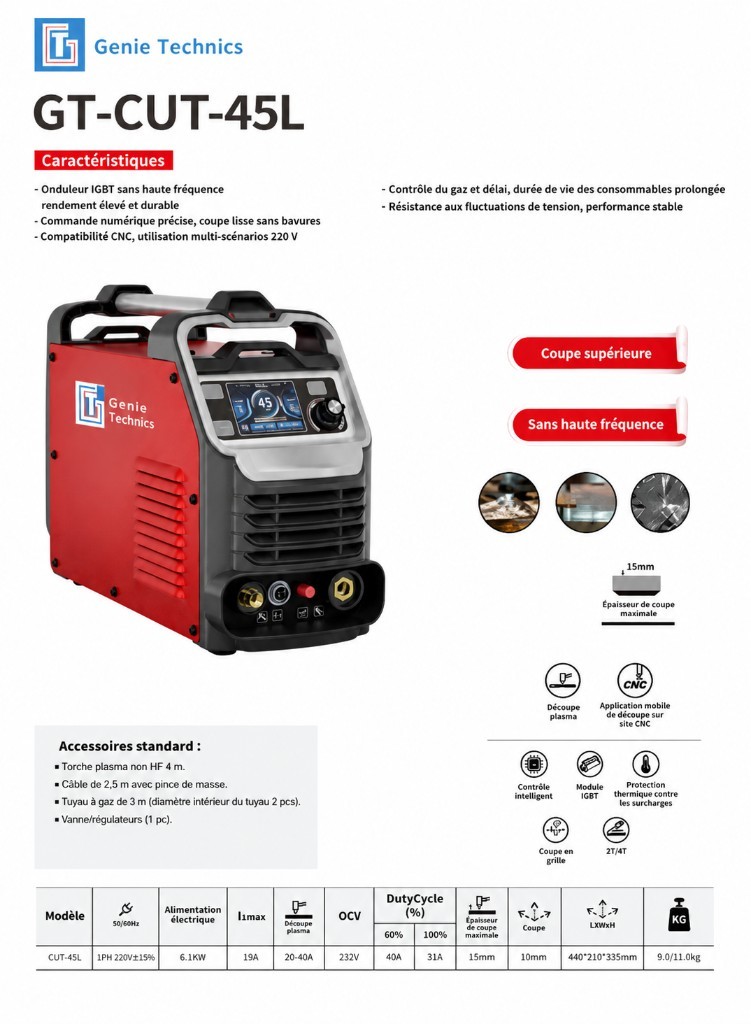

GT-CUT-45L
The GT-CUT-45L is a GENIE TECHNICS IGBT inverter plasma cutter without high frequency: clean cuts up to 15 mm, digital control, 220 V CNC compatibility and resistance to voltage fluctuation.
Characteristics
- IGBT inverter without high frequency: efficiency and durability
- Precise digital control: smooth burr-free cutting
- CNC compatible, multi-scenario use, 220 V
- Gas and delay control: longer consumable life
- Resistance to voltage fluctuation
- Superior cut, non-HF
- Max cutting thickness: 15 mm; standard cut: 10 mm
- Plasma cutting, mobile CNC site cutting, intelligent control
- IGBT module, thermal protection, grid cutting, 2T/4T
- Supply: 1PH 220 V ±15% (50/60 Hz)
- Input power: 6.1 kW
- I1max: 19 A
- Plasma current: 20–40 A
- Open-circuit voltage: 232 V
- Duty cycle: 60% at 40 A / 100% at 31 A
- Dimensions (L × W × H): 440 × 210 × 335 mm
- Net / gross weight: 9.0 / 11.0 kg
- Standard accessories: 4 m non-HF plasma torch; 2.5 m earth cable; 3 m gas hose (2 pieces); regulator (1 pc)
GENIE TECHNICS GT-CUT-45L
