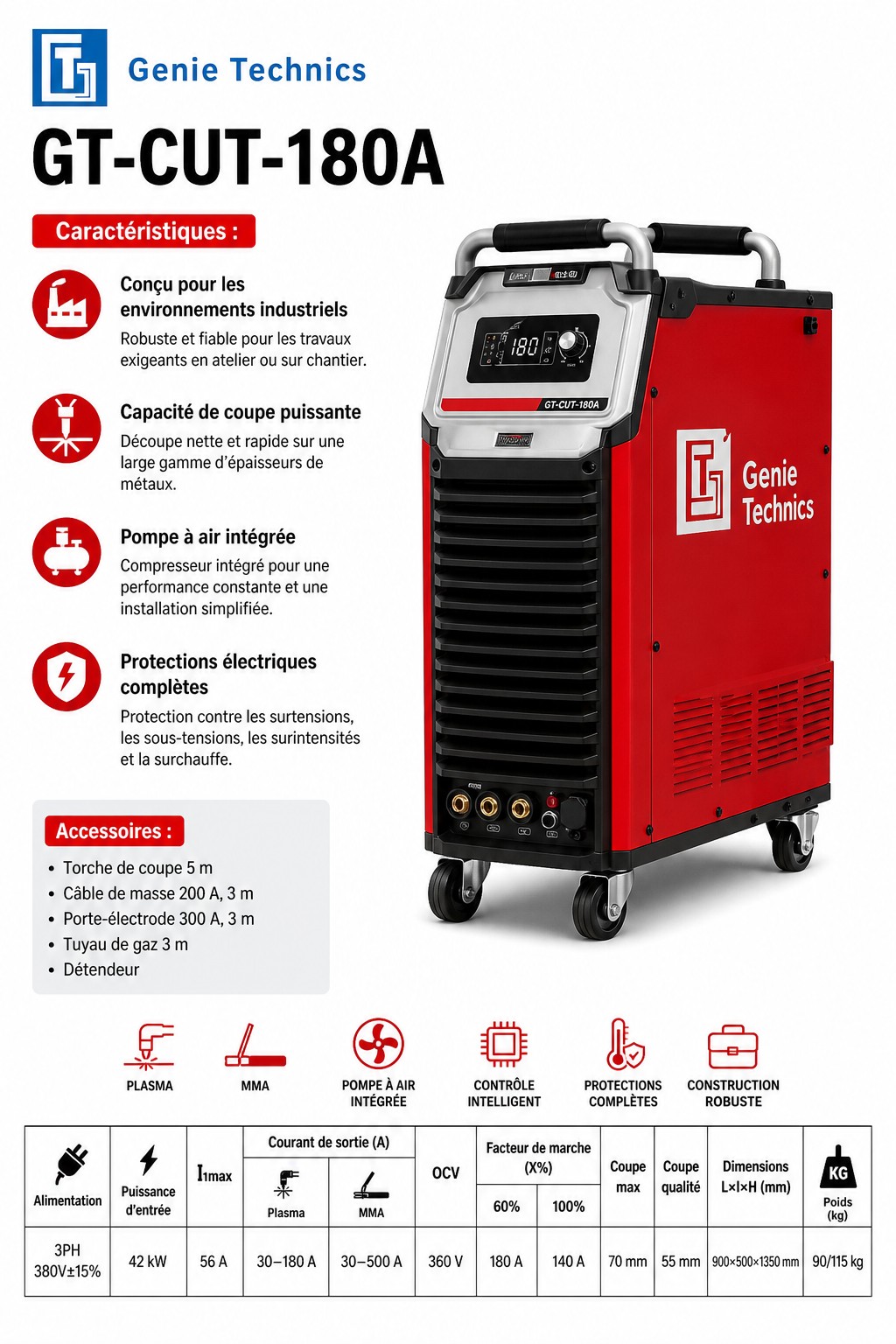

180 A plasma cutter with built-in air pump and MMA — GT-CUT-180A

The GT-CUT-180A is the high-power GENIE TECHNICS plasma cutter: built-in air pump, MMA up to 500 A, max cut 70 mm.

Characteristics

• Heavy industrial use, built-in air pump
• Plasma + MMA
• Electrical and thermal protection
• Supply: 3PH 380 V ±15% (50/60 Hz)
• Input power: 42 kW
• I1max: 56 A
• Plasma current: 30–180 A
• MMA current: 30–500 A
• Open-circuit voltage: 360 V
• Duty cycle 60%: 180 A / 100%: 140 A
• Max cut: 70 mm; quality cut: 55 mm
• Dimensions (L × W × H): 900 × 500 × 1350 mm
• Net / gross weight: 90 / 115 kg
• Standard accessories: 5 m torch; 3 m 200 A earth cable; 3 m 300 A electrode holder; 3 m gas hose; regulator
