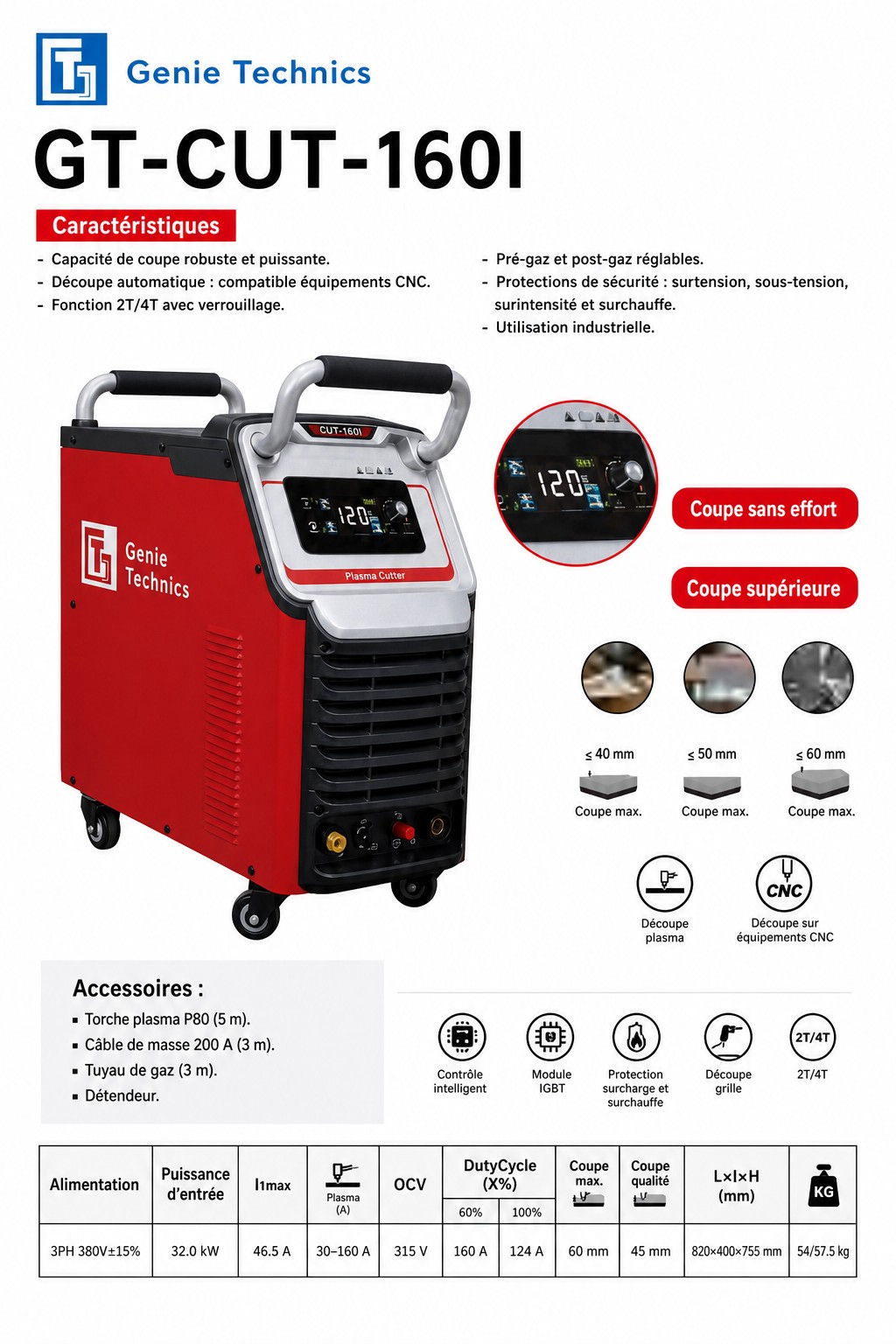

GT-CUT-160I
The GT-CUT-160I is the GENIE TECHNICS 160 A I-series plasma cutter, distinct from the already published GT-MIG-160I; max cut 60 mm.
Characteristics
- Robust cutting capacity, CNC compatible
- 2T/4T, adjustable pre-flow and post-flow
- Electrical and thermal protection
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 32.0 kW
- I1max: 46.5 A
- Plasma current: 30–160 A
- Open-circuit voltage: 315 V
- Duty cycle 60%: 160 A / 100%: 124 A
- Max cut: 60 mm; quality cut: 45 mm
- Dimensions (L × W × H): 820 × 400 × 755 mm
- Net / gross weight: 54 / 57.5 kg
- Standard accessories: 5 m P80 torch; 3 m 200 A earth cable; 3 m gas hose; regulator
GENIE TECHNICS GT-CUT-160I
