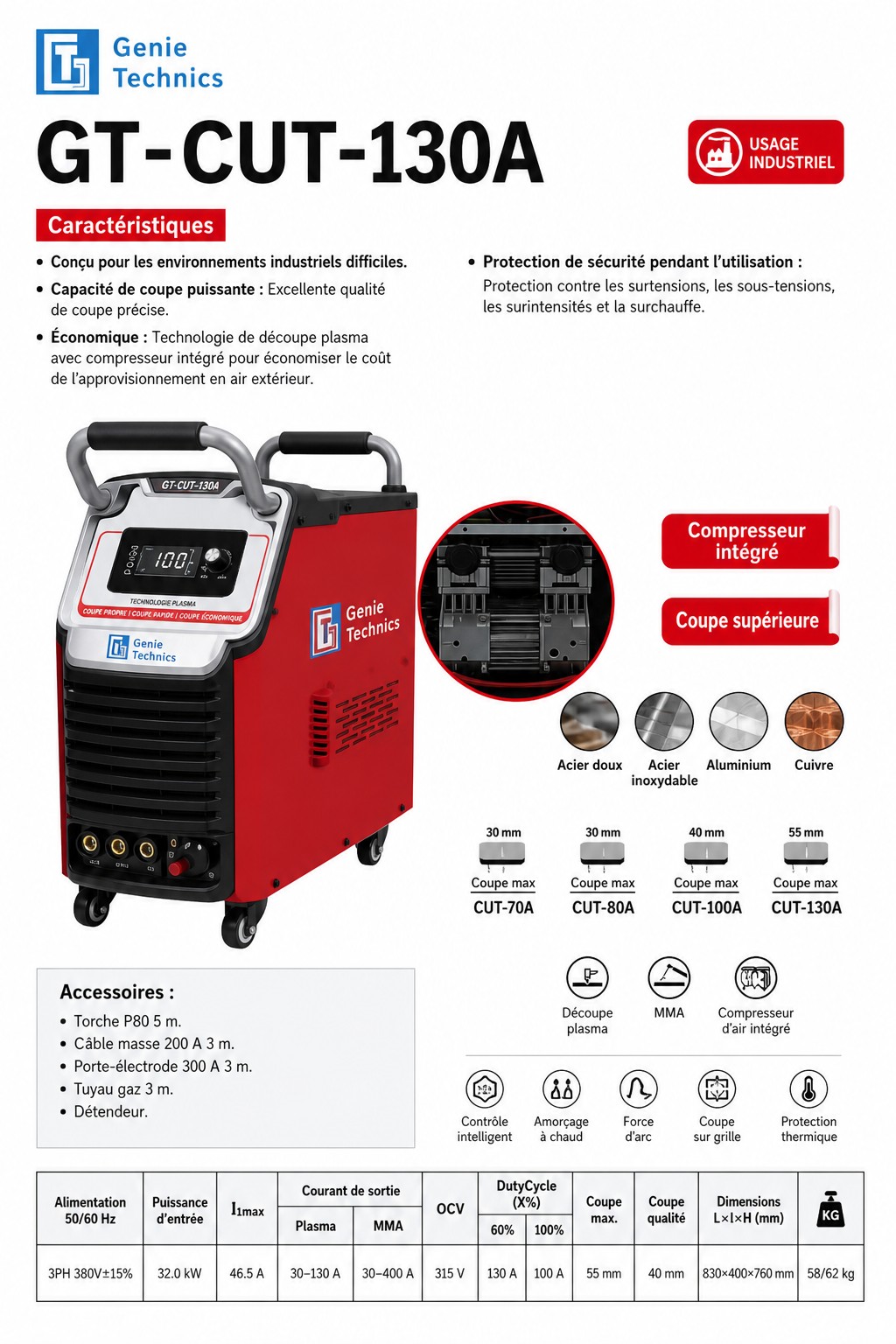

GT-CUT-130A
The GT-CUT-130A is the 130 A model in the GENIE TECHNICS A series: built-in air pump, MMA up to 400 A, max cut 55 mm.
Characteristics
- Industrial use, built-in air pump
- Plasma + MMA
- Electrical and thermal protection
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 32.0 kW
- I1max: 46.5 A
- Plasma current: 30–130 A
- MMA current: 30–400 A
- Open-circuit voltage: 315 V
- Duty cycle 60%: 130 A / 100%: 100 A
- Max cut: 55 mm; quality cut: 40 mm
- Dimensions (L × W × H): 830 × 400 × 760 mm
- Net / gross weight: 58 / 62 kg
- Standard accessories: 5 m P80 torch; 3 m 200 A earth cable; 3 m 300 A electrode holder; 3 m gas hose; regulator
GENIE TECHNICS GT-CUT-130A
