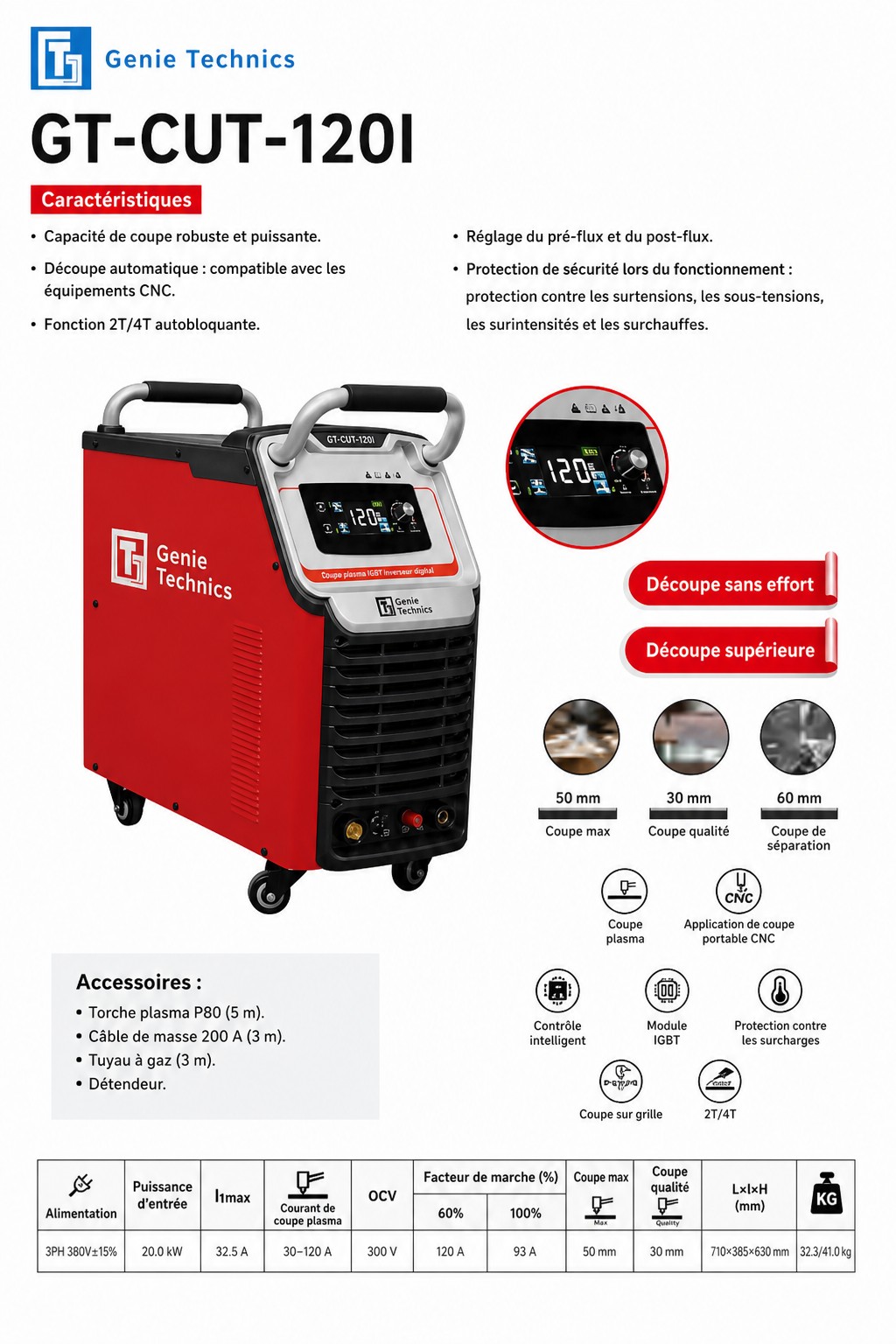

GT-CUT-120I
The GT-CUT-120I is the 120 A model in the GENIE TECHNICS I series, 380 V, max cut 50 mm.
Characteristics
- Robust cutting capacity, CNC compatible
- 2T/4T, adjustable pre-flow and post-flow
- Electrical and thermal protection
- Supply: 3PH 380 V ±15% (50/60 Hz)
- Input power: 20.0 kW
- I1max: 32.5 A
- Plasma current: 30–120 A
- Open-circuit voltage: 300 V
- Duty cycle 60%: 120 A / 100%: 93 A
- Max cut: 50 mm; quality cut: 30 mm
- Dimensions (L × W × H): 710 × 385 × 630 mm
- Net / gross weight: 32.3 / 41.0 kg
- Standard accessories: 5 m P80 torch; 3 m 200 A earth cable; 3 m gas hose; regulator
GENIE TECHNICS GT-CUT-120I
