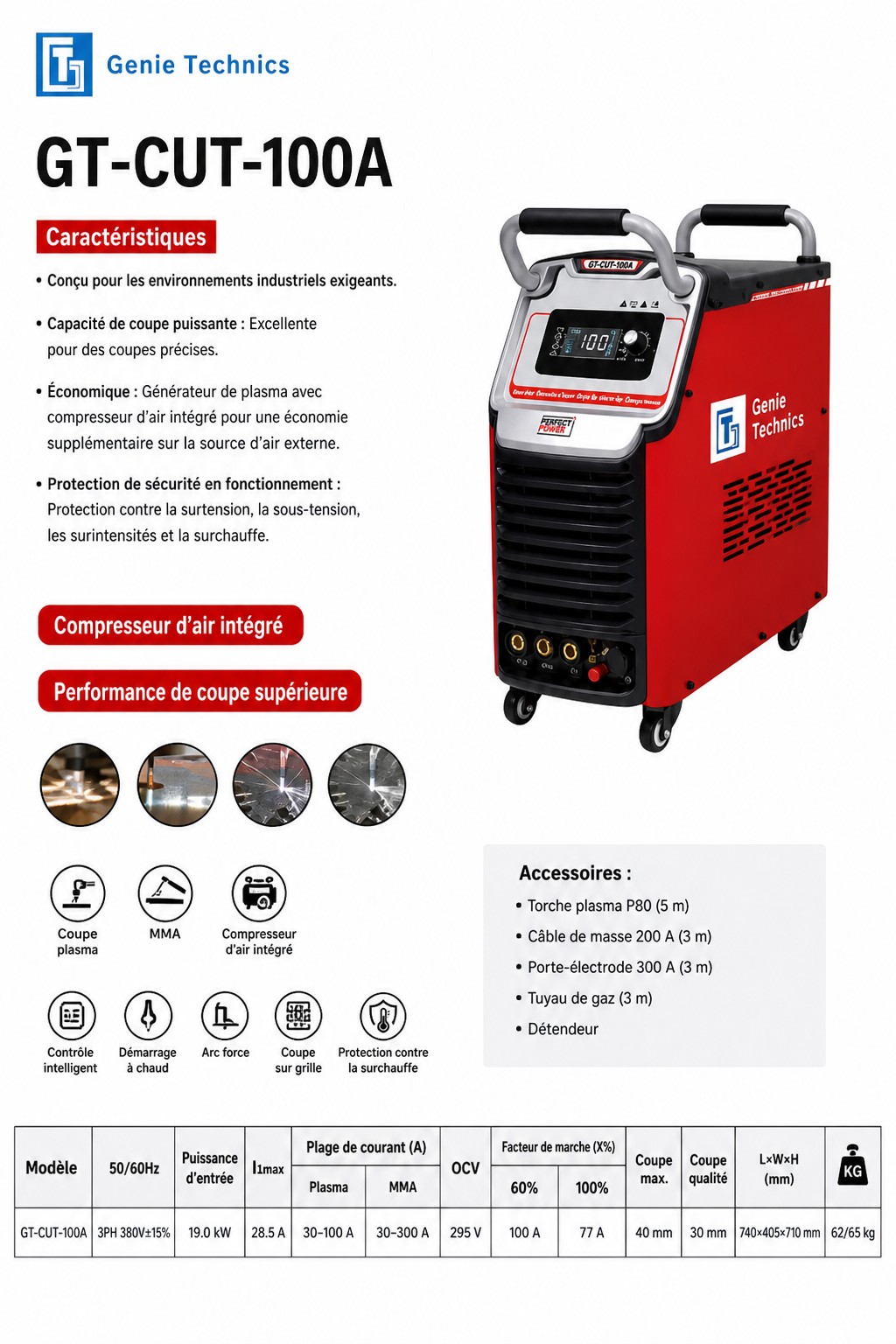

100 A plasma cutter with built-in air pump and MMA — GT-CUT-100A

The GT-CUT-100A is the 100 A model in the GENIE TECHNICS A series: built-in air pump, MMA up to 300 A, max cut 40 mm.

Characteristics

• Industrial use, built-in air pump
• Plasma + MMA
• Electrical and thermal protection
• Supply: 3PH 380 V ±15% (50/60 Hz)
• Input power: 19.0 kW
• I1max: 28.5 A
• Plasma current: 30–100 A
• MMA current: 30–300 A
• Open-circuit voltage: 295 V
• Duty cycle 60%: 100 A / 100%: 77 A
• Max cut: 40 mm; quality cut: 30 mm
• Dimensions (L × W × H): 740 × 405 × 710 mm
• Net / gross weight: 62 / 65 kg
• Standard accessories: 5 m P80 torch; 3 m 200 A earth cable; 3 m 300 A electrode holder; 3 m gas hose; regulator
