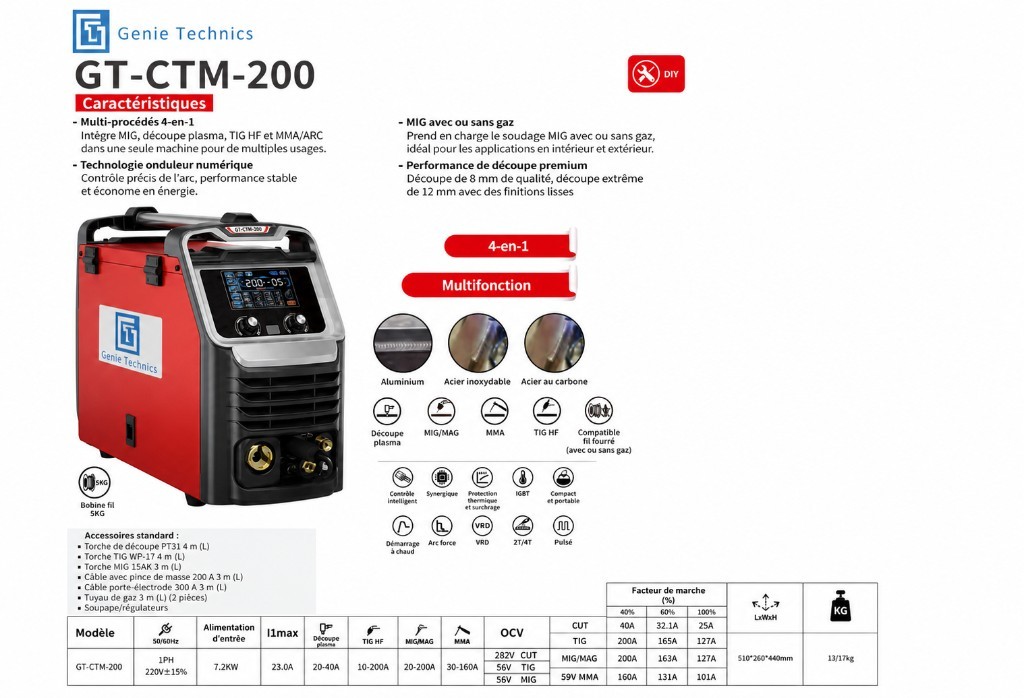

GT-CTM-200
The GT-CTM-200 is a compact GENIE TECHNICS 4-in-1 unit: MIG (with or without gas), plasma cutting, HF TIG and MMA/ARC. The digital inverter targets a precise arc, cutting up to 8 mm (12 mm severance) for DIY and professional use.
Characteristics
- 4-in-1 multi-process: MIG, plasma cutting, HF TIG, MMA/ARC
- Digital inverter: precise arc, energy efficiency
- MIG with or without gas (indoor / outdoor)
- Premium cutting: 8 mm; severance cut up to 12 mm
- 5 kg wire spool
- Illustrated materials: aluminium, stainless steel, carbon steel
- Flux-cored wire compatible
- Intelligent synergic control, IGBT, thermal protection
- Hot Start, Arc Force, VRD, 2T/4T, pulse
- Compact and portable
- Supply: 1PH 220 V ±15% (50/60 Hz)
- Input power: 7.2 kW
- I1max: 23.0 A
- CUT current: 20–40 A
- HF TIG current: 10–200 A
- MIG/MAG current: 20–200 A
- MMA current: 30–160 A
- Open-circuit voltage: 282 V (CUT); 56 V (TIG); 56 V (MIG); 59 V (MMA)
- CUT duty cycle: 40% at 40 A / 60% at 32.1 A / 100% at 25 A
- TIG duty cycle: 40% at 200 A / 60% at 165 A / 100% at 127 A
- MIG/MAG duty cycle: 40% at 200 A / 60% at 163 A / 100% at 127 A
- MMA duty cycle: 40% at 160 A / 60% at 131 A / 100% at 101 A
- Dimensions (L × W × H): 510 × 260 × 440 mm
- Net / gross weight: 13 / 17 kg
GENIE TECHNICS GT-CTM-200
