GT-SMAI-001

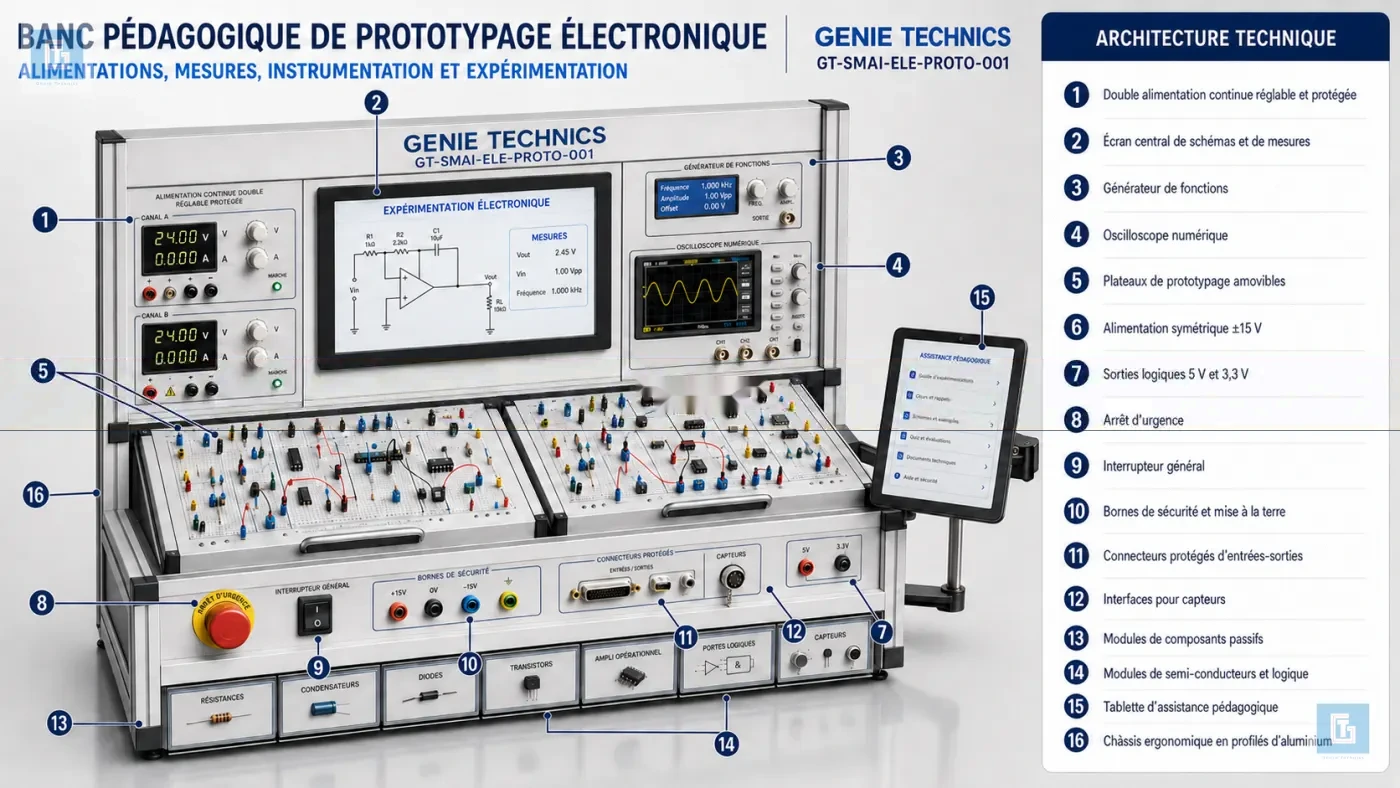

The GENIE TECHNICS electronic prototyping training bench (GT-SMAI-ELE-PROTO-001) brings together power supplies, measurement, instrumentation and experimentation on a single workstation. Designed for teaching analogue and digital electronics, it lets learners move from the schematic to the real circuit under laboratory conditions, with integrated teaching assistance.
Characteristics
- Dual adjustable and protected DC power supply
- Central screen for schematics and measurements
- Integrated function generator
- Integrated digital oscilloscope
- Removable prototyping boards
- Symmetrical ±15 V supply
- 5 V and 3.3 V logic outputs
- Emergency stop and main switch
- Safety terminals and earthing
- Protected input/output connectors
- Sensor interfaces
- Passive component modules (resistors, capacitors)
- Semiconductor and logic modules (diodes, transistors, op-amps, logic gates)
- Teaching assistance tablet
- Ergonomic chassis made of aluminium profiles
GENIE TECHNICS GT-SMAI-001
