GT-DAC-048

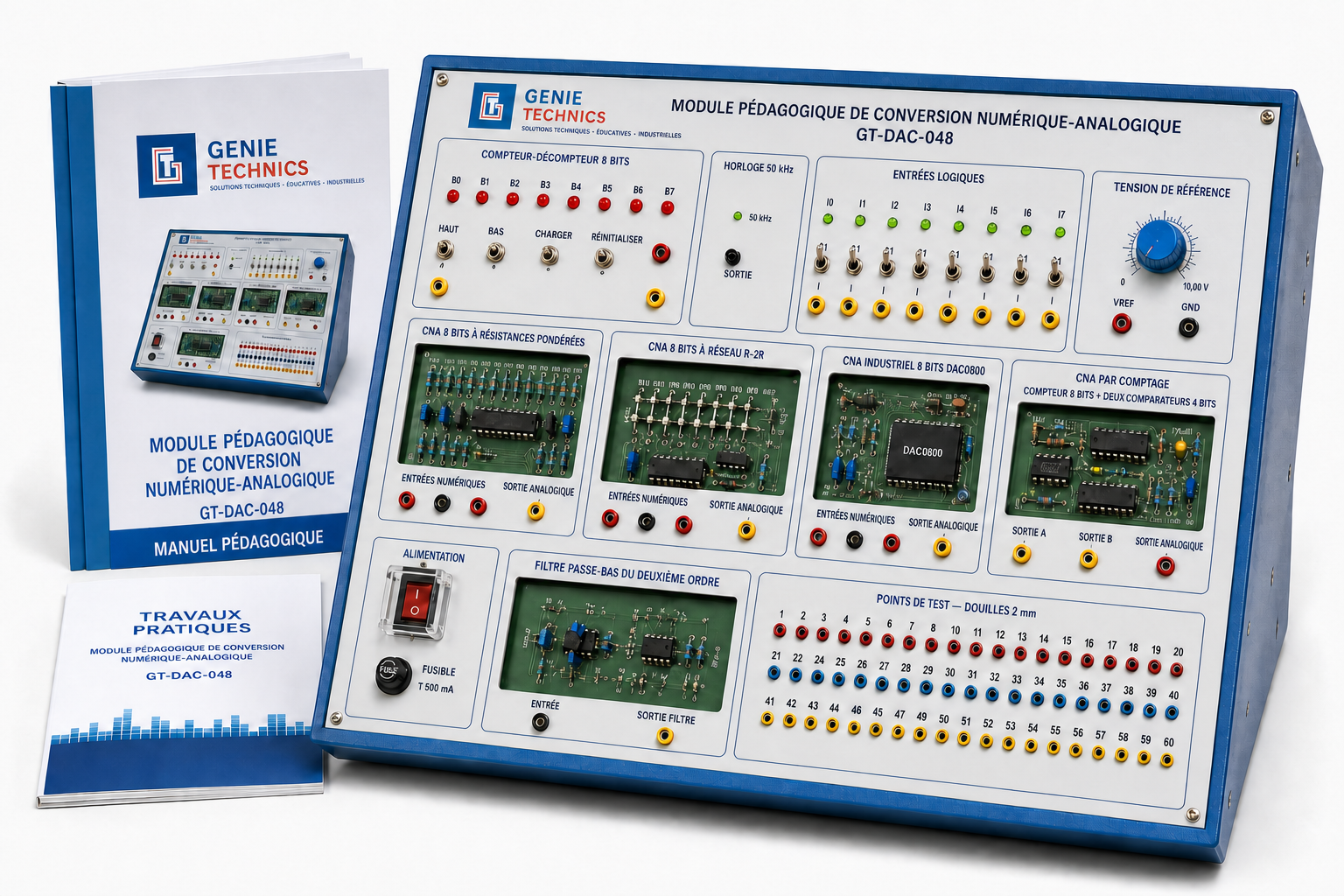

GENIE TECHNICS 8-bit digital-to-analog conversion training module. It combines a weighted network, an R-2R ladder, an integrated DAC0800 converter and counting conversion with a second-order low-pass filter, built around a CMOS up/down counter and a 50 kHz clock.
Characteristics
- CMOS natural-binary 8-bit up/down counter
- CMOS clock: 50 kHz
- Eight switch-controlled logic-state indicators
- Integrated regulated reference voltage adjustable by potentiometer
- 8-bit precision weighted-resistor network
- 8-bit precision R-2R ladder network
- Integrated DAC0800 digital-to-analog converter
- Counting DAC: 8-bit counter and two 4-bit comparators generating rectangular-voltage duty cycle
- Second-order low-pass filter for counting DAC
- Protected test points and complete pedagogical documentation
