GT-ADC-047

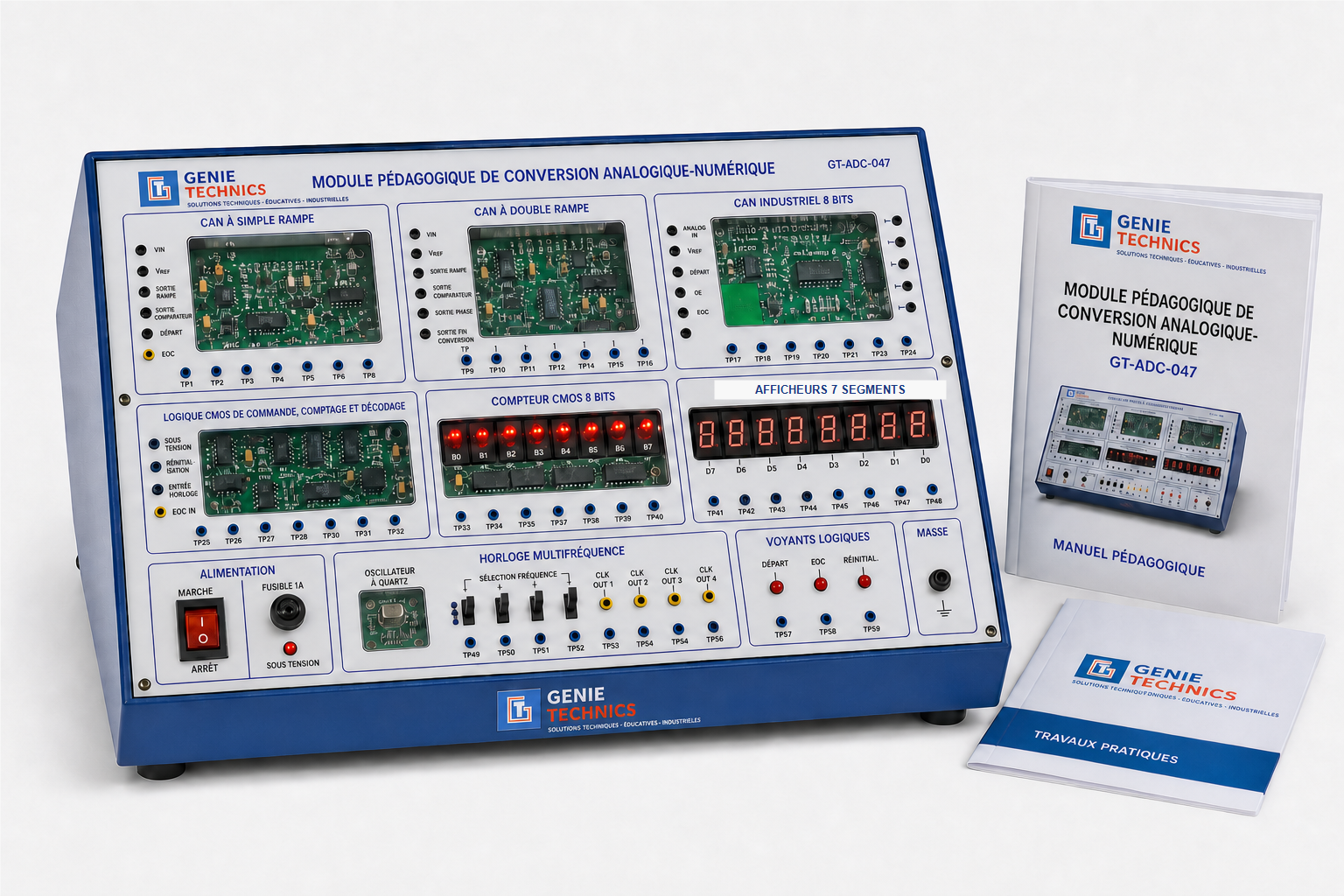

GENIE TECHNICS analog-to-digital conversion training module for the comparative study of single-slope, dual-slope and industrial 8-bit converter conversion, with CMOS logic, 8-bit counter, 7-segment displays, multi-frequency crystal clock and test points.
Characteristics
- Single-slope analog-to-digital conversion
- Dual-slope analog-to-digital conversion
- Complete CMOS logic
- 8-bit counter
- Seven-segment displays
- Separate industrial 8-bit ADC
- Multi-frequency quartz crystal clock
- Accessible, protected and clearly identified test points
- Electrical safety suitable for educational use
- Pedagogical manual and practical exercises supplied
- Non-contractual schematic illustration
GENIE TECHNICS GT-ADC-047
